Rack
Entry/Exit
Rear 117 x 403 4.6 x 15.9
Dimension
(Mm) (in)
Rear
Front

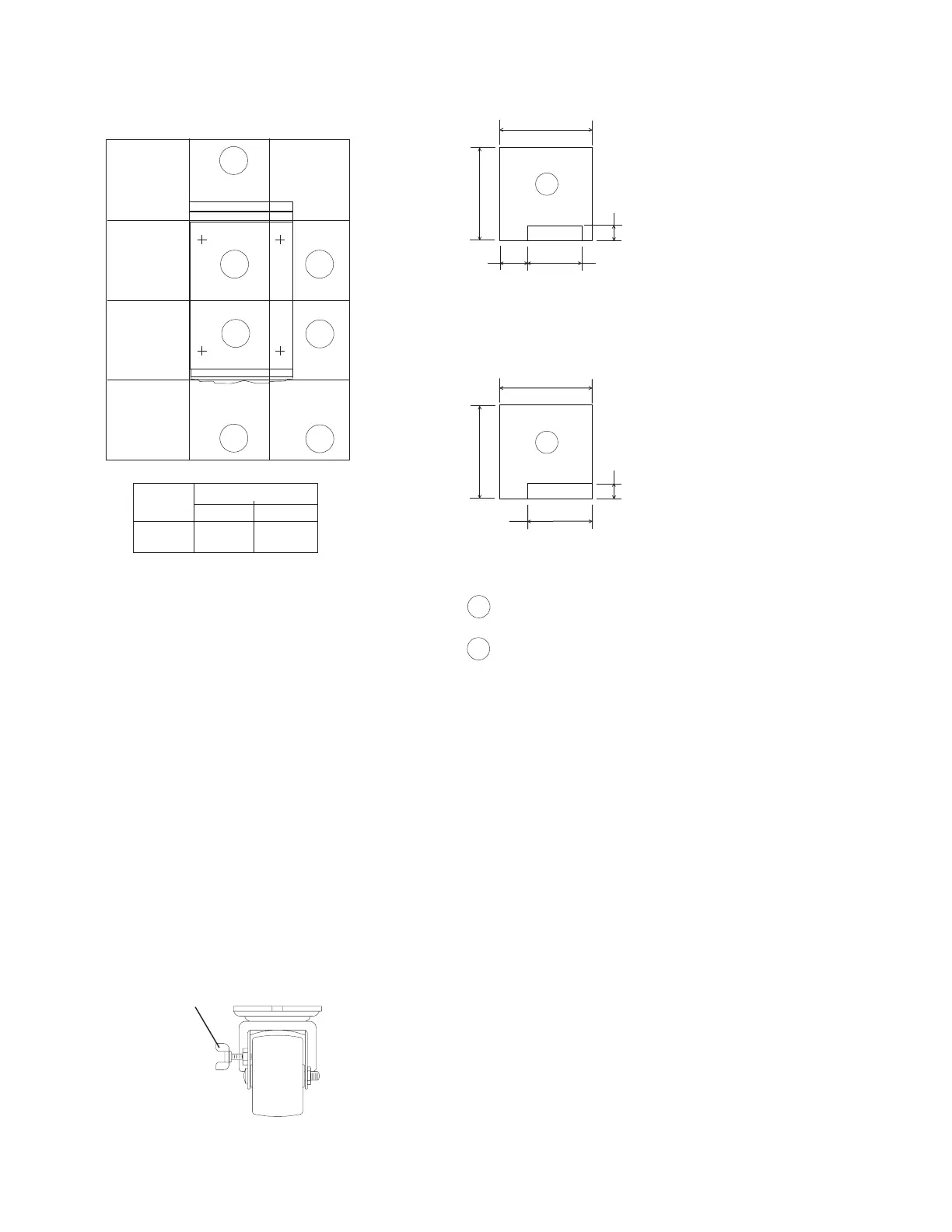

Raised Floor with 610-mm (24-inch) Floor Panels
A
A
B B
B
B
B
C
C
C
Uncut Panels
Perforated Panels
610 mm (24 in.)
610 mm (24 in.)
102 mm (4 in.)
178 mm (7 in.) 356 mm (14 in.)
A
610 mm (24 in.)
610 mm (24 in.)
102 mm (4 in.)
432 mm (17 in.)
Recommended for Non-Reinforced Pedestal Type
Recommended for Reinforced Pedestal or Stringer Types
Securing the Rack
The following can be ordered by the customer as additional rack-securing options for the Eserver pSeries
655.
v RPQ 8A1183 for attaching the rack-mounting plates to the concrete floor (non-raised floor)
v RPQ 8A1185 to attach the rack to a concrete floor when on a raised floor (9 1/2 inches to 11 3/4 inches
high)
v RPQ 8A1186 to attach the rack to a concrete floor when on a raised floor (11 3/4 inches to 16 inches
high)
Positioning the Rack: To unpack and position the rack, do the following:
1. Remove all packing and tape from the rack.
2. Position the rack according to the customer floor plan.
3. Lock each caster wheel by tightening the thumbscrew on the caster.
Thumbscrew
106 Site and Hardware Planning Information
