IBM Aptiva Hardware Handbook

112 Installing adapter cards
Installing adapter cards
Before you install an adapter card, you must remove the
system unit cover. For instructions, see page 107.
Lay the system unit on its side. To ensure that the sys-
tem unit lays flat, make sure the base (bottom) of the
system unit hangs over the edge of your work surface as
shown in the illustration.
To install an adapter card:
1. Rest your system on a sturdy, flat surface. Turn the
system unit so that the system board faces you.
2. Remove the adapter card slot cover screw. Then
remove the slot cover.

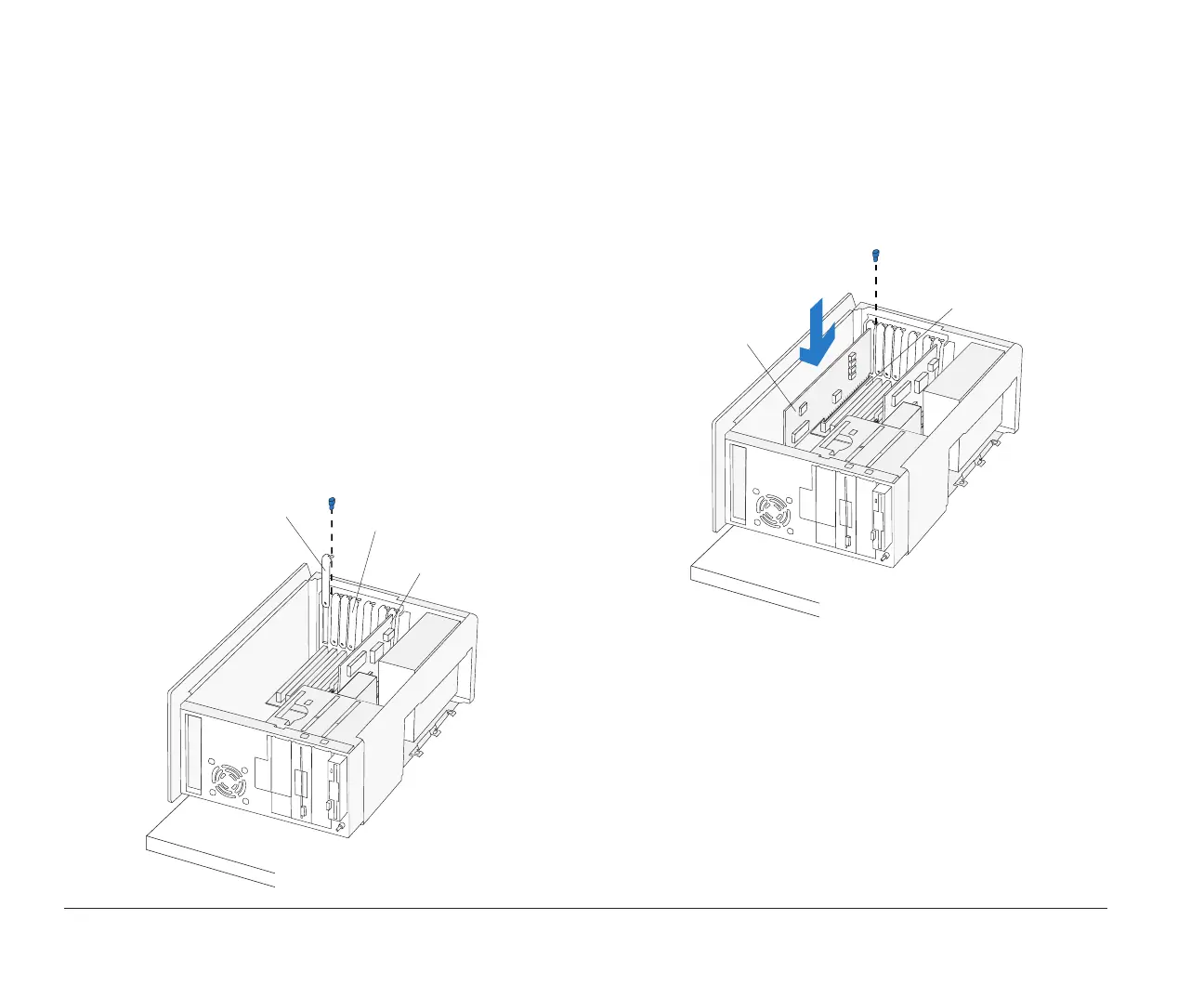

(Front)
(Top)
Adapter
Card
Adapter
Card Slots
Adapter Card
Slot Cover
3. Align and insert the adapter card into the adapter
card connector. Insert the screw.
4. Reinstall all hardware and screws you removed to
install the adapter card. Reconnect cables, if
necessary.
(Front)
(Top)
Adapter
Card
Adapter Card
Connector
bi2gntce.bk : bi2gusy2.doc Page 112 Saturday, June 3, 1995 6:54 AM

IBM Aptiva Specifications

General

CPU	Intel Pentium
RAM	8 MB to 64 MB
Operating System	Windows 95
Graphics	S3, ATI
Optical Drive	CD-ROM
Ports	Serial, Parallel, PS/2
Expansion Slots	ISA, PCI
