Installing and removing a drive in bay 4 121
Installing and removing a drive in bay 4
Bay 4 can hold up to a 3.5-inch half high drive, such as a diskette or tape drive. For drive removal reverse these steps.

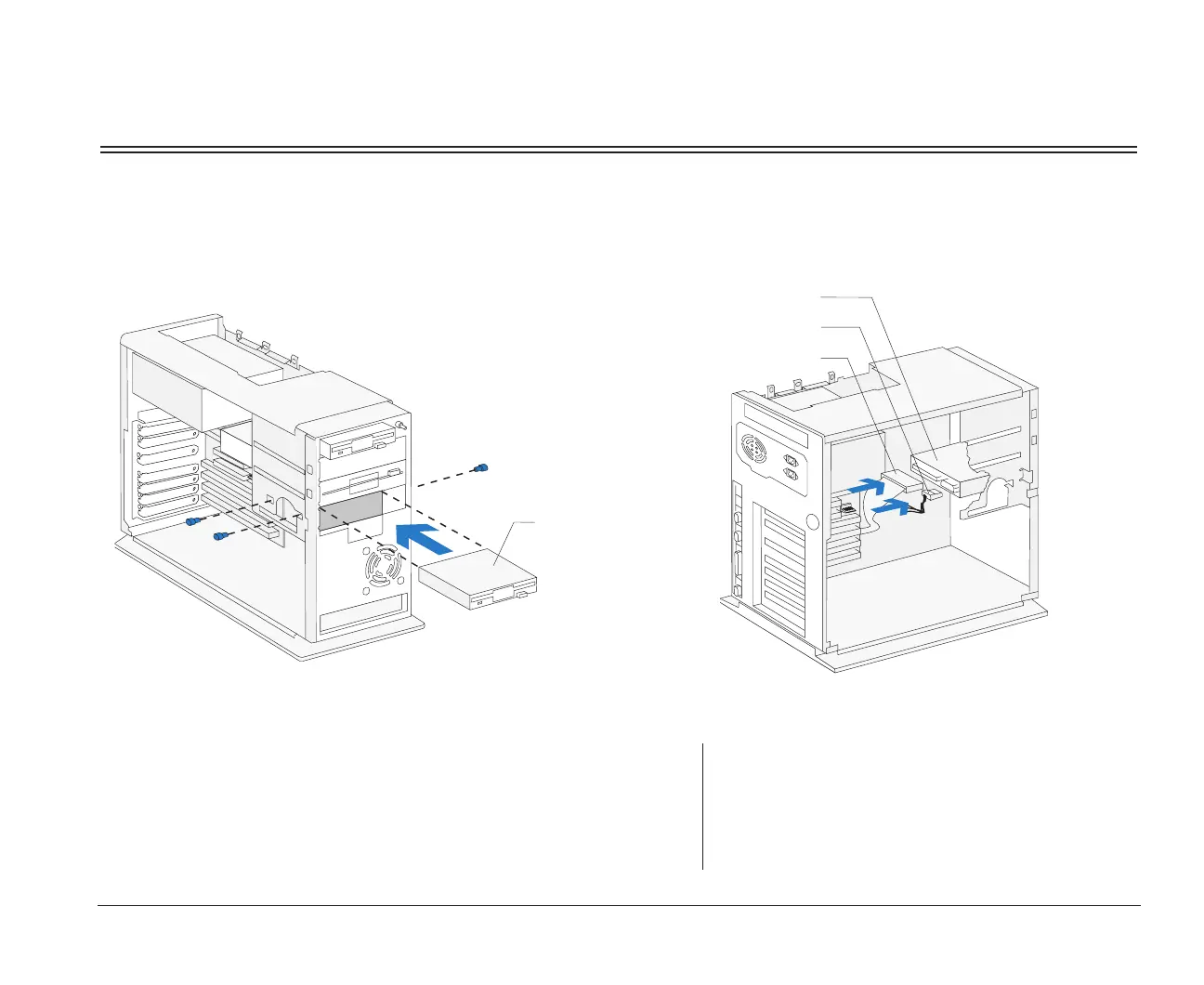

1. Insert the drive into the bay. Align the screw holes
and insert the three screws.
Drive
(
Front View
)
2. Connect the power and signal cables to the drive.
note:
If you are adding a diskette drive or a tape drive that
attaches to the Diskette connector, make sure the signal
cable you plug into the drive is attached to the Diskette
connector on the system board. To identify the Diskette
connector on the system board, see “Identifying parts of
the system board” on page 127.
Drive
Signal Cable
Power Cable
Back View
bi2gntce.bk : bi2gusy2.doc Page 121 Saturday, June 3, 1995 6:54 AM
