IBM Aptiva Hardware Handbook

Installing and removing a drive in bay 1 119
Installing and removing a drive in bay 1
Bay 1 can hold a 3.5-inch slim drive, such as a diskette, or tape drive. For drive removal, reverse the steps shown below.

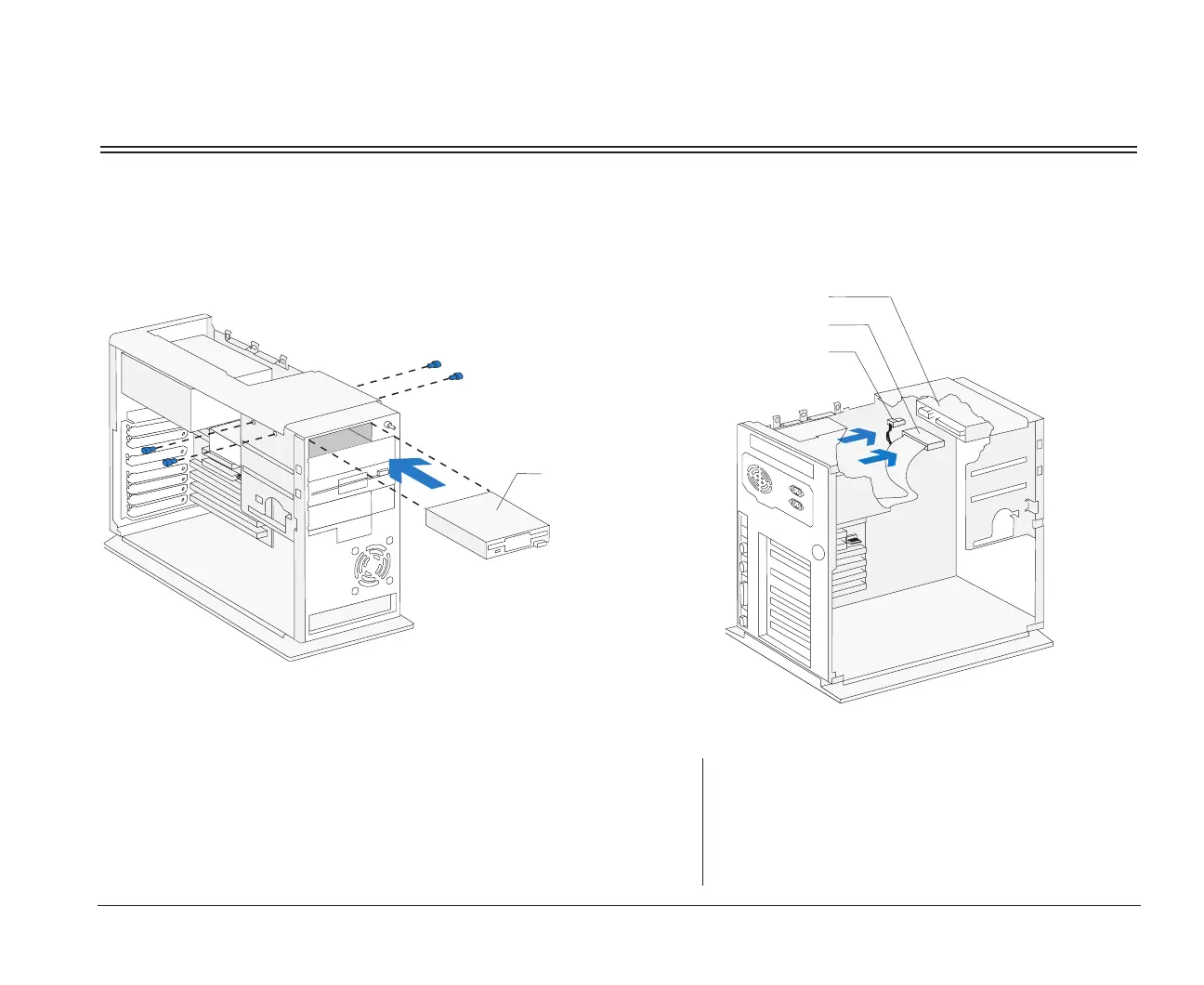

1. Insert the drive into the bay. Align the screw holes
and insert the four screws.
(
Front View
)
Drive
2. Connect the power and signal cables to the drive.
note:
If you are adding a diskette drive or a tape drive that
attaches to the Diskette connector, make sure the signal
cable you plug into the drive is attached to the Diskette
connector on the system board. To identify the Diskette
connector on the system board, see “Identifying parts of
the system unit” on page 108.
Drive
Signal Cable
Power Cable
(Back View)
bi2gntce.bk : bi2gusy2.doc Page 119 Saturday, June 3, 1995 6:54 AM

IBM Aptiva Specifications

General

CPU	Intel Pentium
RAM	8 MB to 64 MB
Operating System	Windows 95
Graphics	S3, ATI
Optical Drive	CD-ROM
Ports	Serial, Parallel, PS/2
Expansion Slots	ISA, PCI
