About Mwave cards 25
2. Move the jumper from the enabled position to the
disabled position as shown in the picture.
3. Align and insert the Mwave adapter card into the
adapter card connector from which you removed
it. Insert the screw.
4. Reattach the cables to the Mwave adapter card.
If you need more information about Mwave card that is
already installed in your computer, please refer to the
documentation that came with it.
note:
The documentation that came with your Mwave
card may either be online or in a printed book.

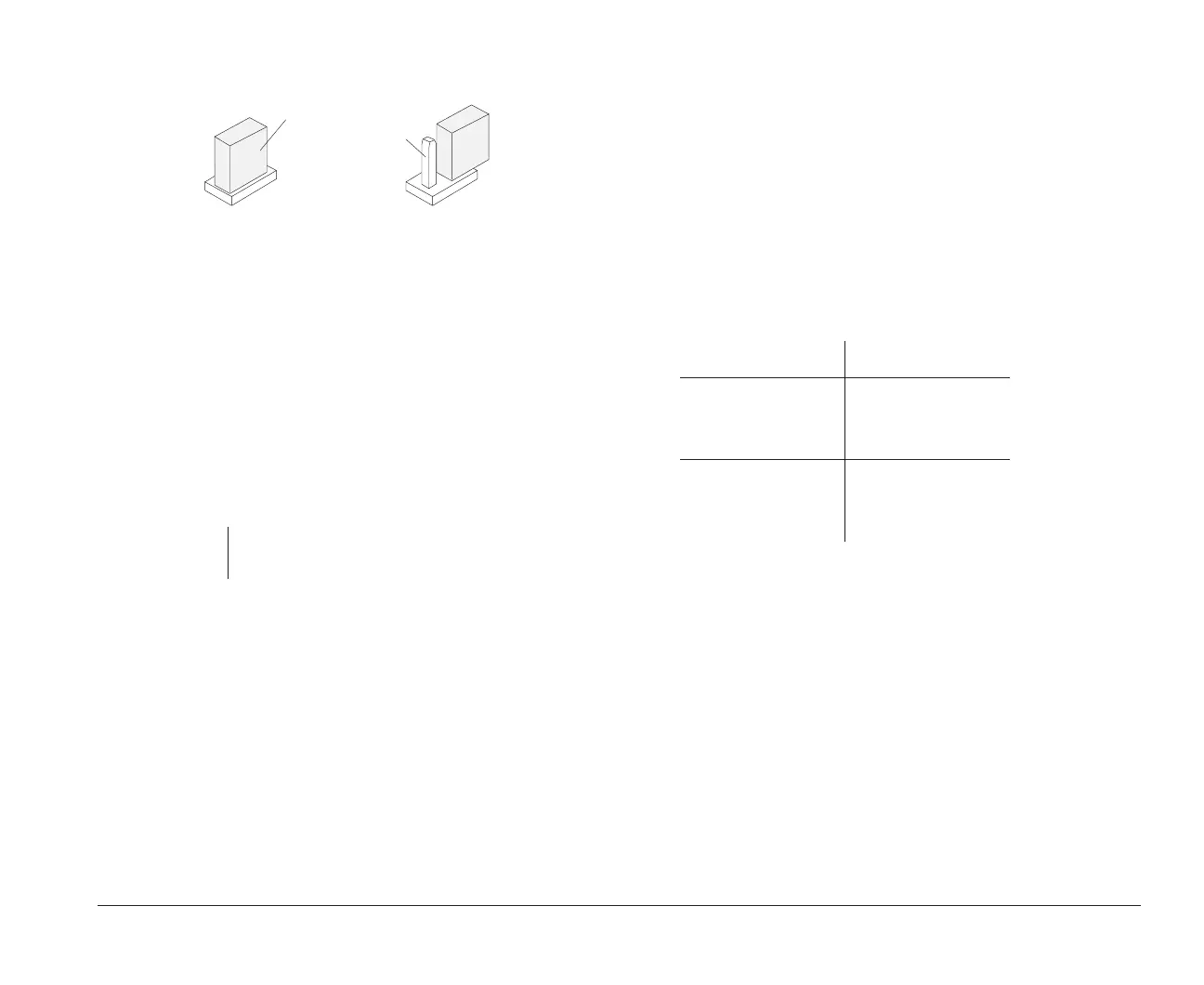

P10
P10
(Enable)
Jumper
Jumper
Pin
(Disable)
About serial ports
IBM Aptiva PCs have built-in external serial ports
already installed in the computer. The connectors for
these ports are located on the back of your computer.
These ports can be used to connect a serial mouse,
serial printer or other serial devices and to transfer data
between computers.
Serial ports A and B support these addresses and
interrupts.
Conflicts may arise if you add adapter cards with serial
ports or if you change the address settings on your
modem. You can resolve most of these conflicts by
using the Setup Utility to change serial port addresses.
See “Working with the Setup Utility” on page 69 for
more information.
Address Interrupt
3F8
3E8
IRQ 4
2F8
2E8
IRQ 3
