Telescopic front nose
When replacing the telescopic front nose, it is not necessary to change completely the unit, but
only some parts supplied with the spare parts kit.

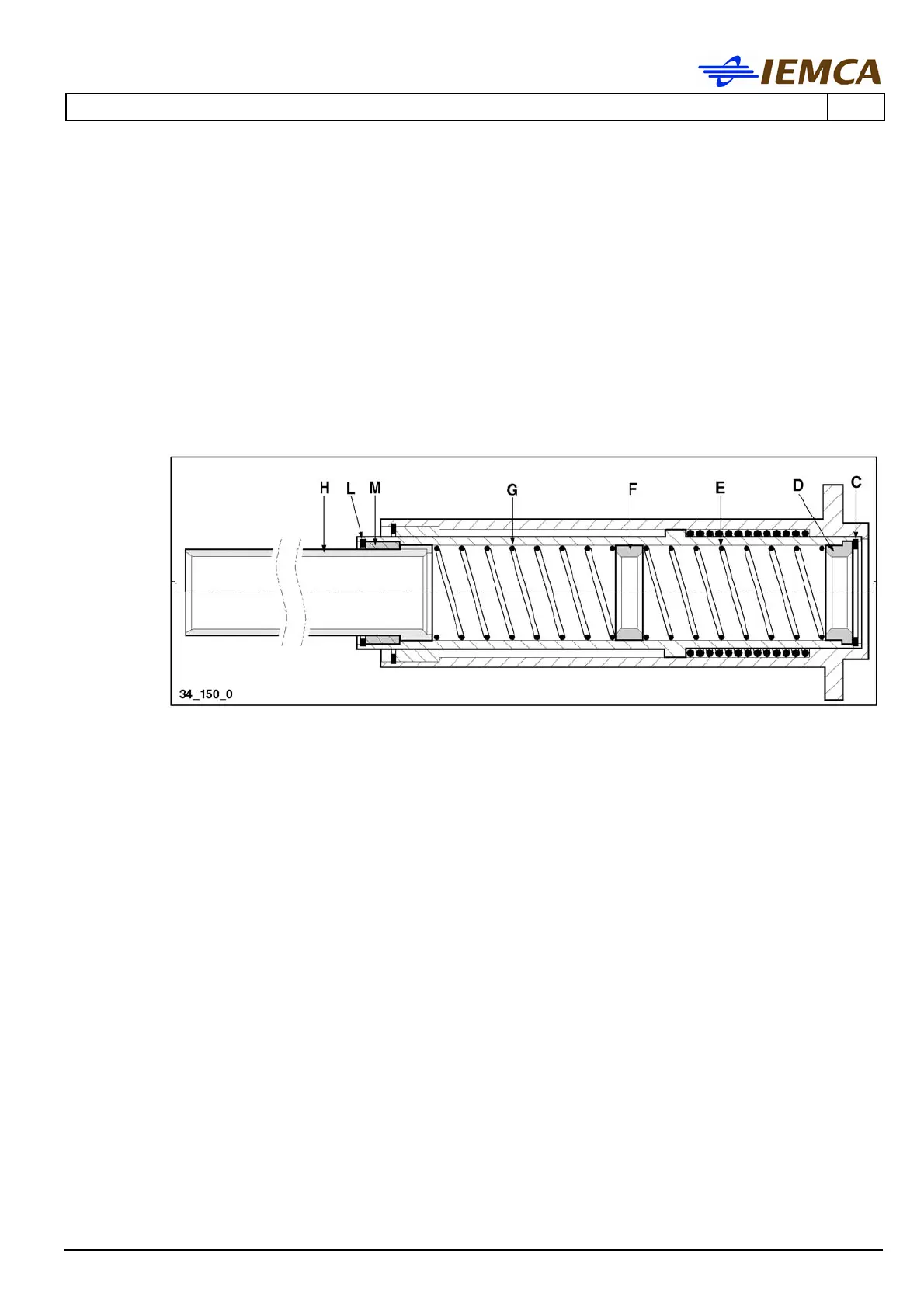

• Press the intermediate stage to the end of its stroke and remove the ring "C".
• Extract the bush "D", the spring "E", the bush "F", the spring "G" and the sleeve "H".
• Remove the ring "L", replace the bush M with another one suitable for the bar and
reassemble the ring "L".
• Replace the sleeve "H", the spring "G", the bush "F", the spring "E" and the bush "D". The
sleeve "H" and bushes "F" and "D" must be suitable for the bar.
• Reassemble the ring "C".
