IEMCA BOSS 545 E - 4.1 PACKAGING
; 4.2 LIFTING

EN
4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
4 - Pag. 4 / 32

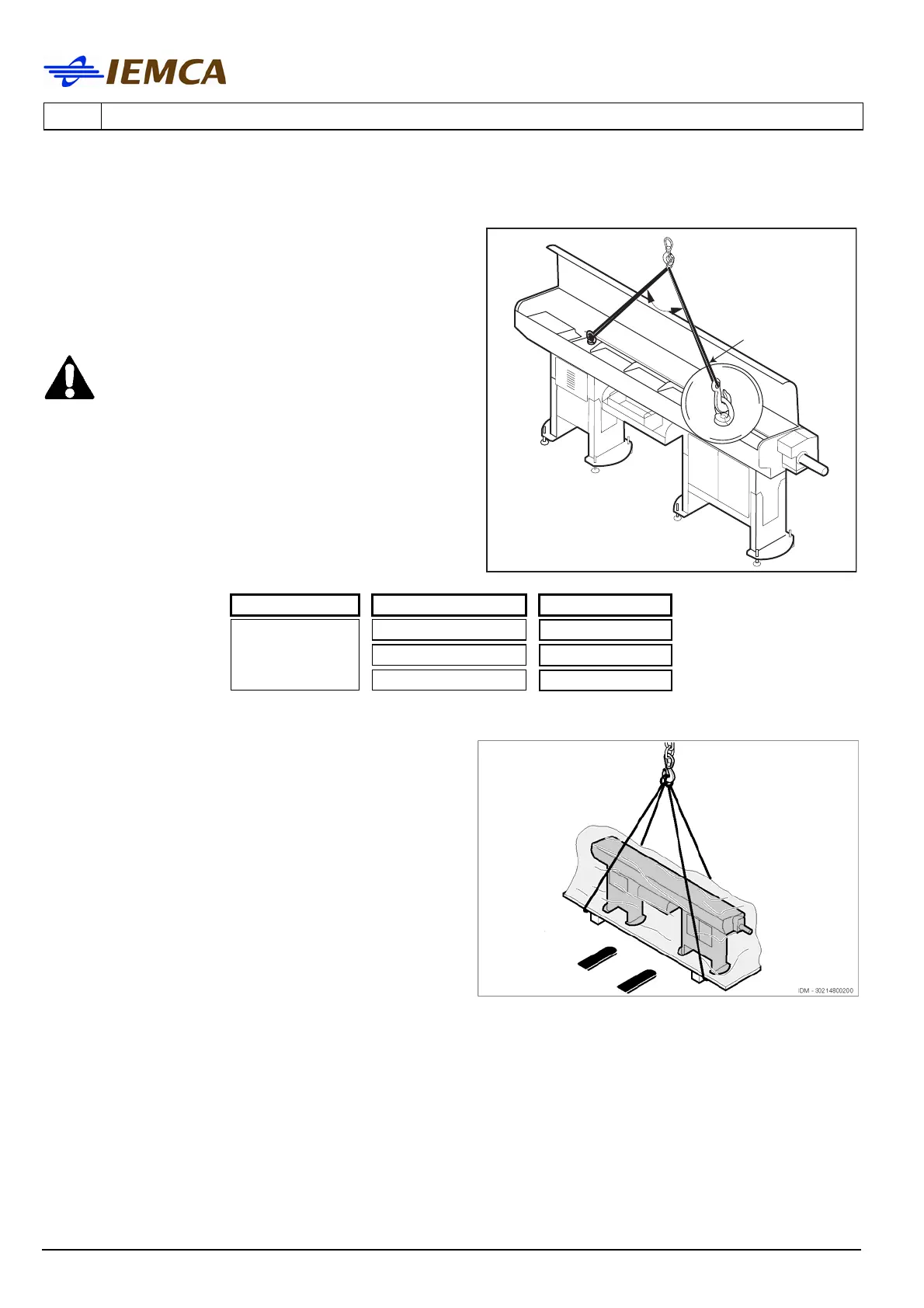

LIFTING WITH NO PACKAGING
• Install two round-eye eyebolts "A" with
threaded stem (1 UNI - ISO3266 M20).
• Use a hook type lifting device of suitable
capacity.
DANGER - WARNING:
During lifting operations without
packaging, do not use belts or chains
which length is shorter to that specified
in the table.
Model Version A (mm)
32 1550
37 2090
Boss
44 2750
LIFTING WITH PALLET
• Use a hook (or fork) type lifting device of
suitable capacity (see information on
packaging).
60
A
A30_E_09_04_04
