IEMCA BOSS 545 E - 11.28 381 P..011 EJECTORS - Guide channels Ø52÷86 - Table

EN
11 - COLLETS BOSS 332/545/552 HD
11 - Pag. 34 / 34

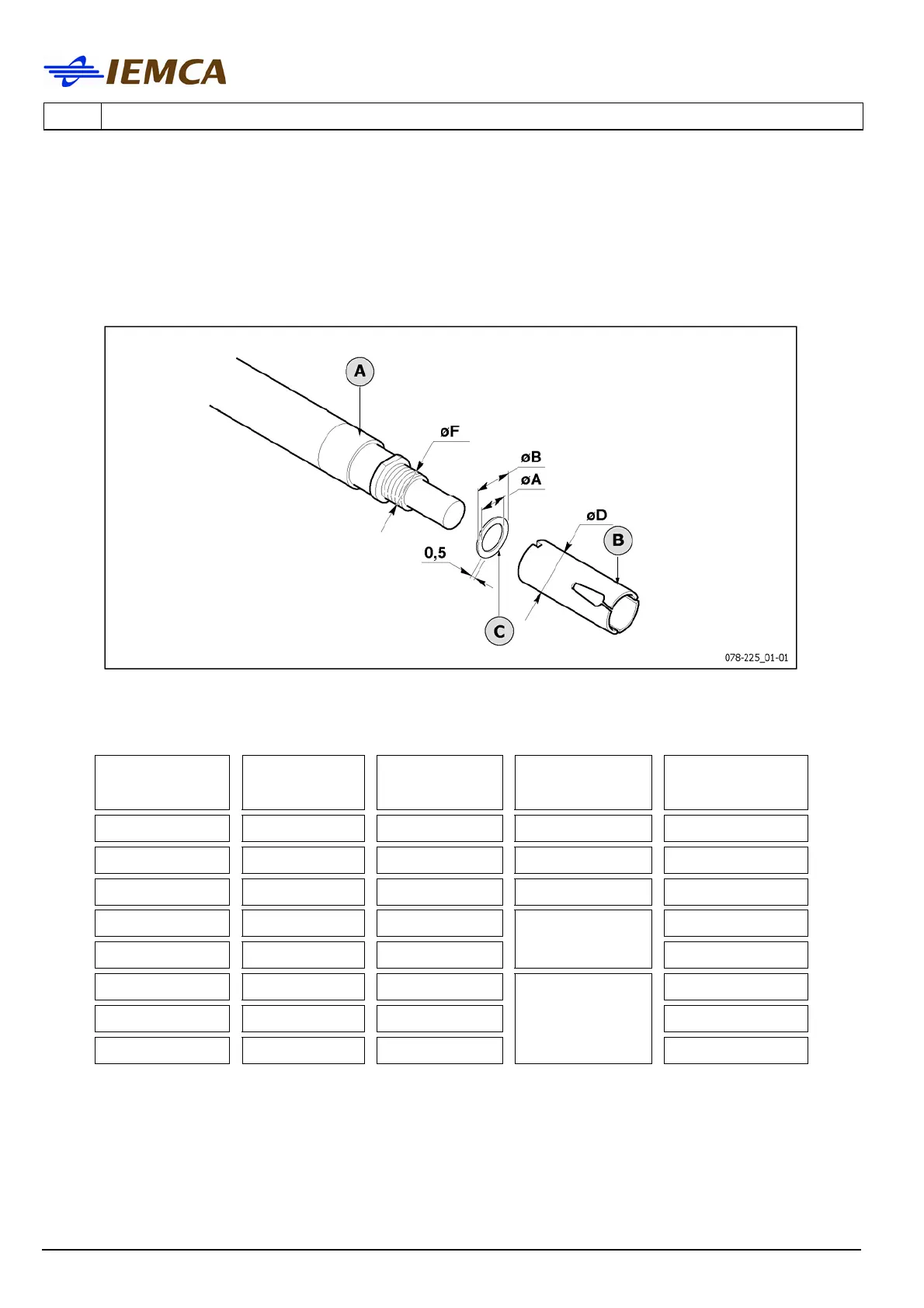

11.29 RINGS FOR COLLETS 078-225
11.30 RINGS FOR COLLETS - Table
A Revolving tip
B Collet
C Ring
øA (mm) øB (mm) øD (mm) øF
Ring p/n.
8 14 16 22540008(*)
12 18 20 22540004(*)
12 25 25 078800220(*)
17 24 30 22540026
17 30 35
M17x1
078800200
25 30 30 078800220
25 35 40 22540009
25 45 51
M25x1.5
078800230
(*) Only for collets 316 (TAL)
