4.5.5 Levelling and alignment
FOREWORD
The alignment between the bar feeder and lathe is the most critical phase; therefore, this
operation should be carried out with the greatest accuracy by experienced personnel.
WARNING – CAUTION:
an error during the alignment may be the major cause of a bad operation of the
bar feeder and of its consequent damage.
Preliminary procedure
See the "LEVELLING AND ALIGNMENT" section, CH. 4.
Levelling
See the "LEVELLING AND ALIGNMENT" section, CH. 4.
Alignment
See the "LEVELLING AND ALIGNMENT" section, CH. 4.

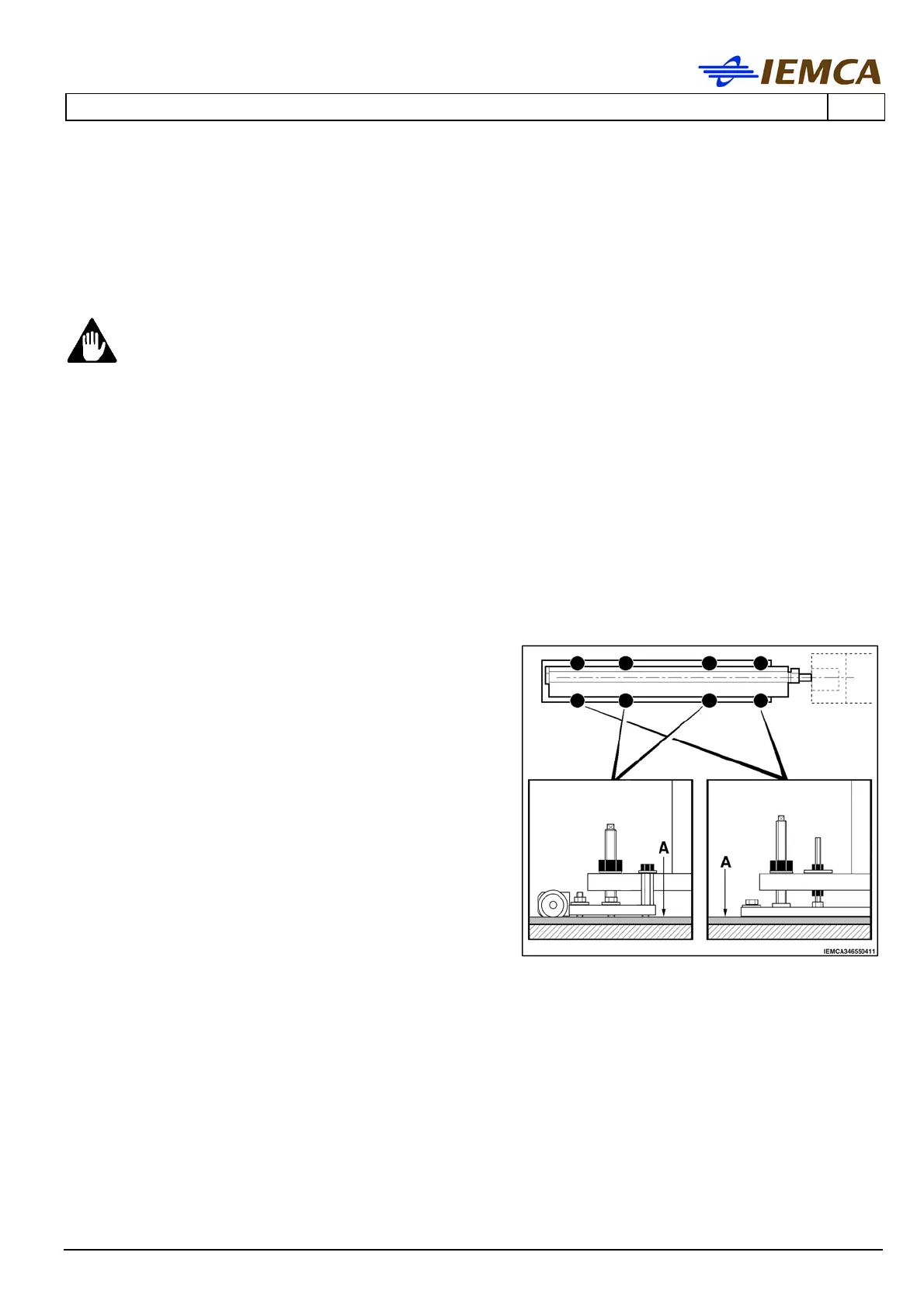

Positioning adjustments
After checking alignment of the bar feeder with the
thread, carry out any required adjustments.
Adjust height by turning the screws in the support
feet; carry out lateral adjustment with calibrated
mallet blows on the sides of frame "A".
During this phase, any adjustment carried out
during the levelling phase should be preserved;
therefore, in most cases, it is necessary to find the
correct adjustment of the bar feeder position.
