EN
4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
4 - Pag. 24 / 32

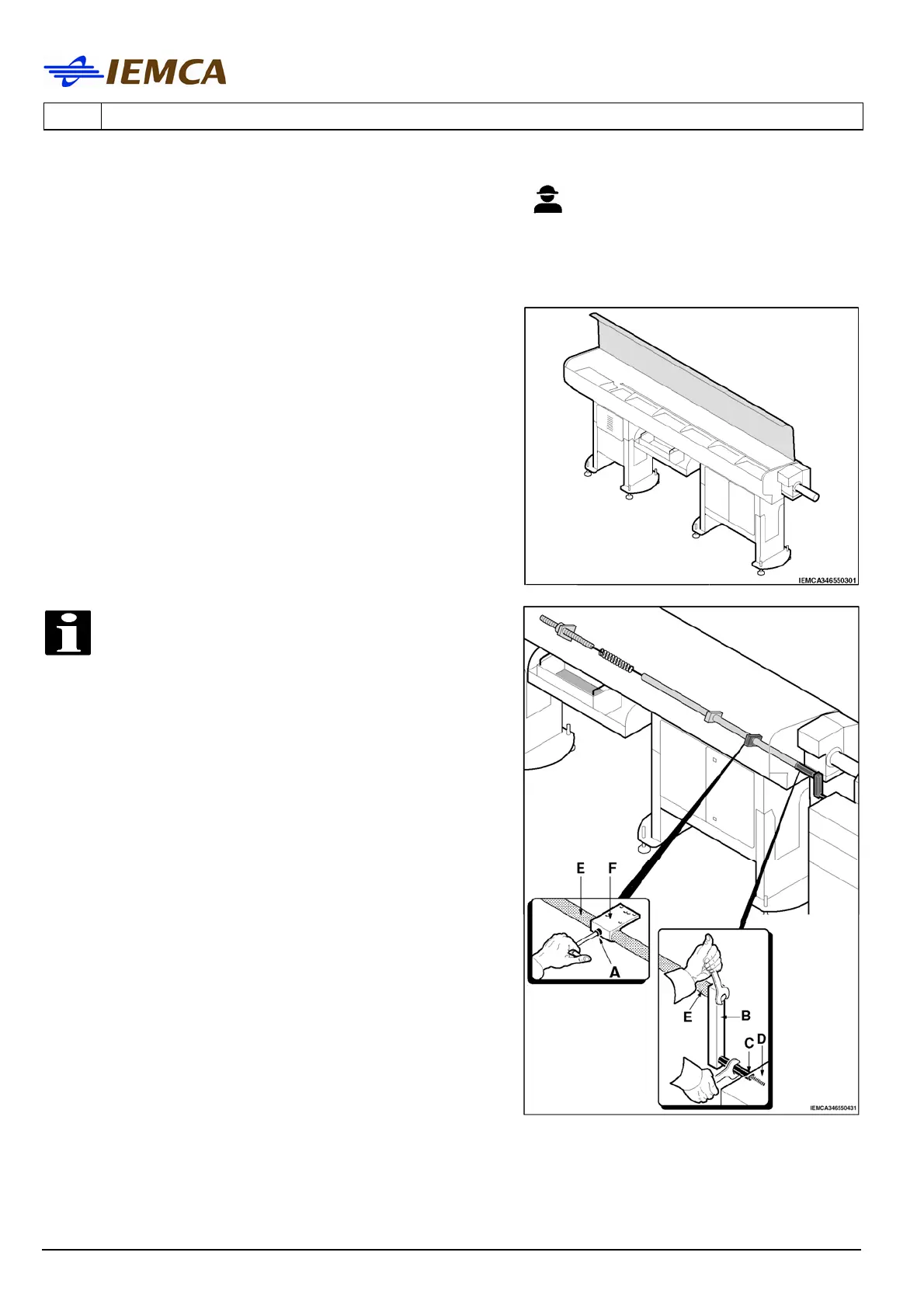

4.7 DEVICES FOR CAM LATHES - INSTALLATION
4.7.1 Headstock return device
• Open the upper guard.
INFORMATION:
the figure shows a general example of
installation; contact IEMCA service
department for more information.
• Remove the original headstock return unit from the
lathe.
• Loosen the screw "A".
• Install the bar "B" and the tie rod "C", and make
sure that the headstock "D" can run freely
throughout its stroke together with shaft "E".
• Place the support "F" so that it does not hinder the
headstock stroke and tighten the screw "A".
