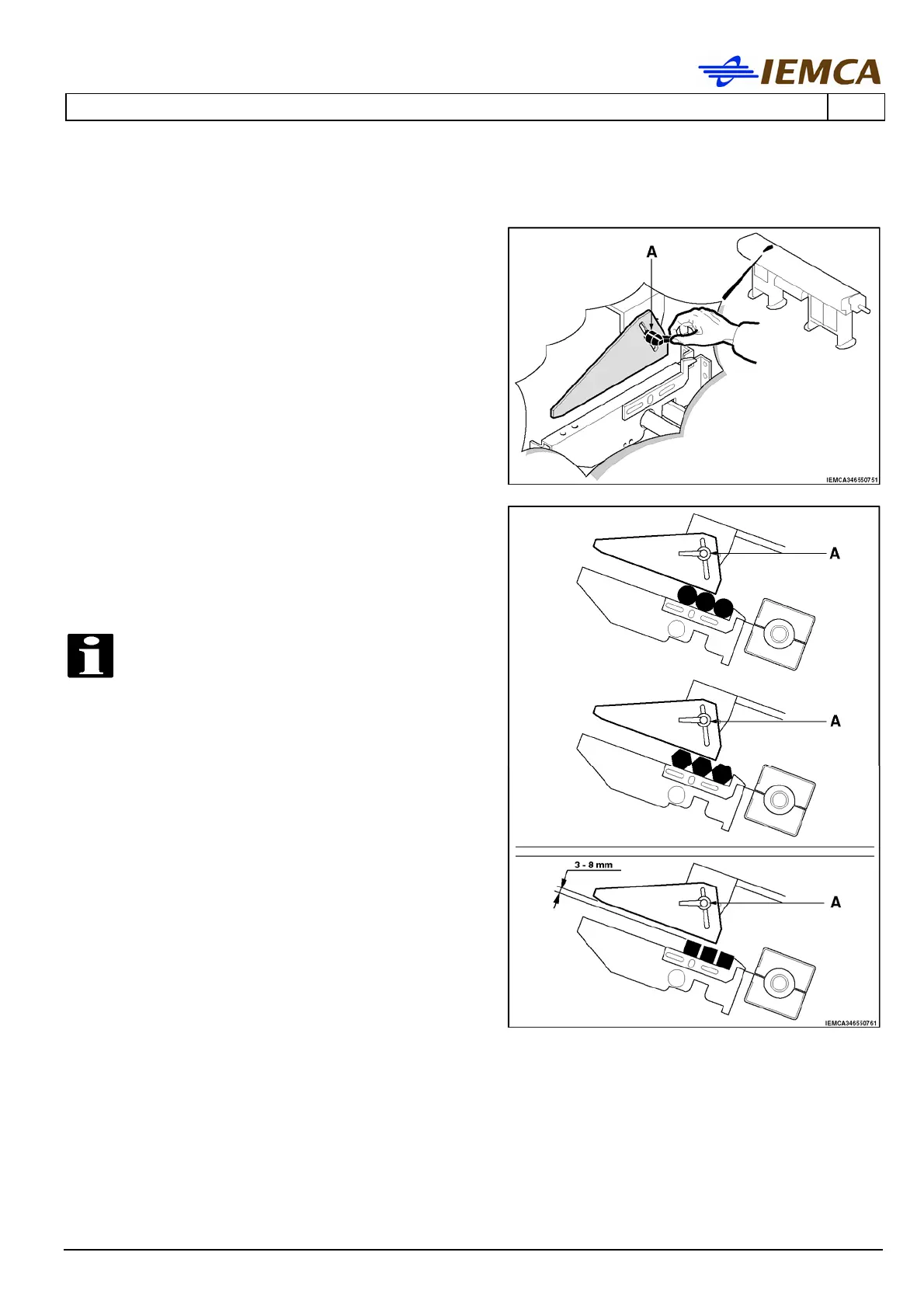

Bar guide plate adjustment
• Loosen the handle "A", lift the plate and
tighten the handle "A"; repeat this operation on
all the plates.
• Load the two bars into the magazine, loosen
the handle "A" and drop the plates that will
stop against the bars.
• If the bars are round or hexagonal, make sure
that a little clearance is left between the plate
and the bars. The clearance must be 3÷8 mm
for square bars.
• Tighten the screws "A" on all plates.
INFORMATION: Remove plates before
machining bars with a diameter greater
than ø36.
