4.7.3 Camshaft release device
INFORMATION:
the figures show a general example
of installation; contact IEMCA service
department for more information.

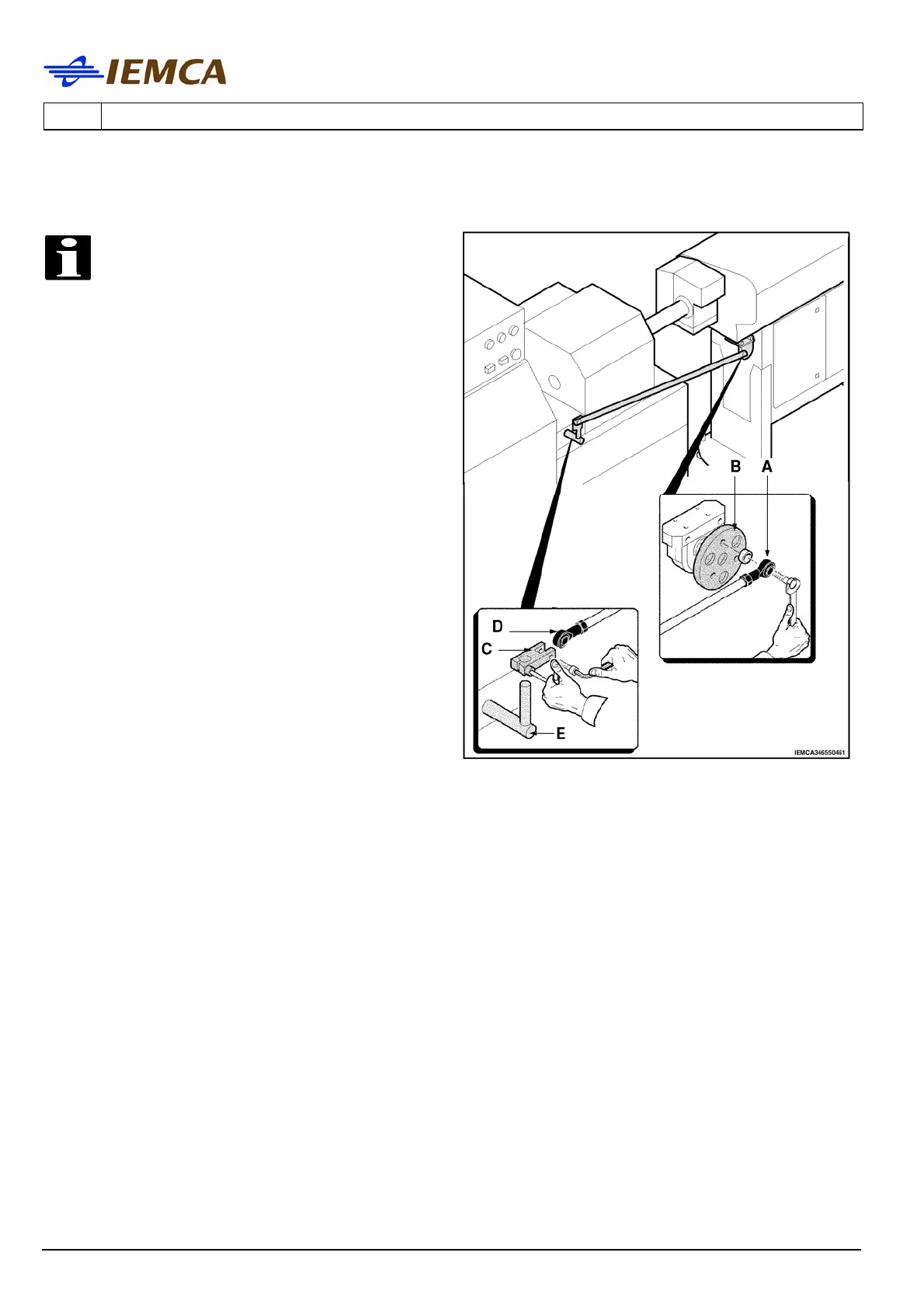

Radial version
• Assemble the articulation "A" in the flange
"B".
• Assemble the joint "C" in the articulation "D"
and in the lathe control "E".
