2 - TECHNICAL INFORMATION BOSS 332/545/552 HD
EN
2 - Pag. 5 / 32

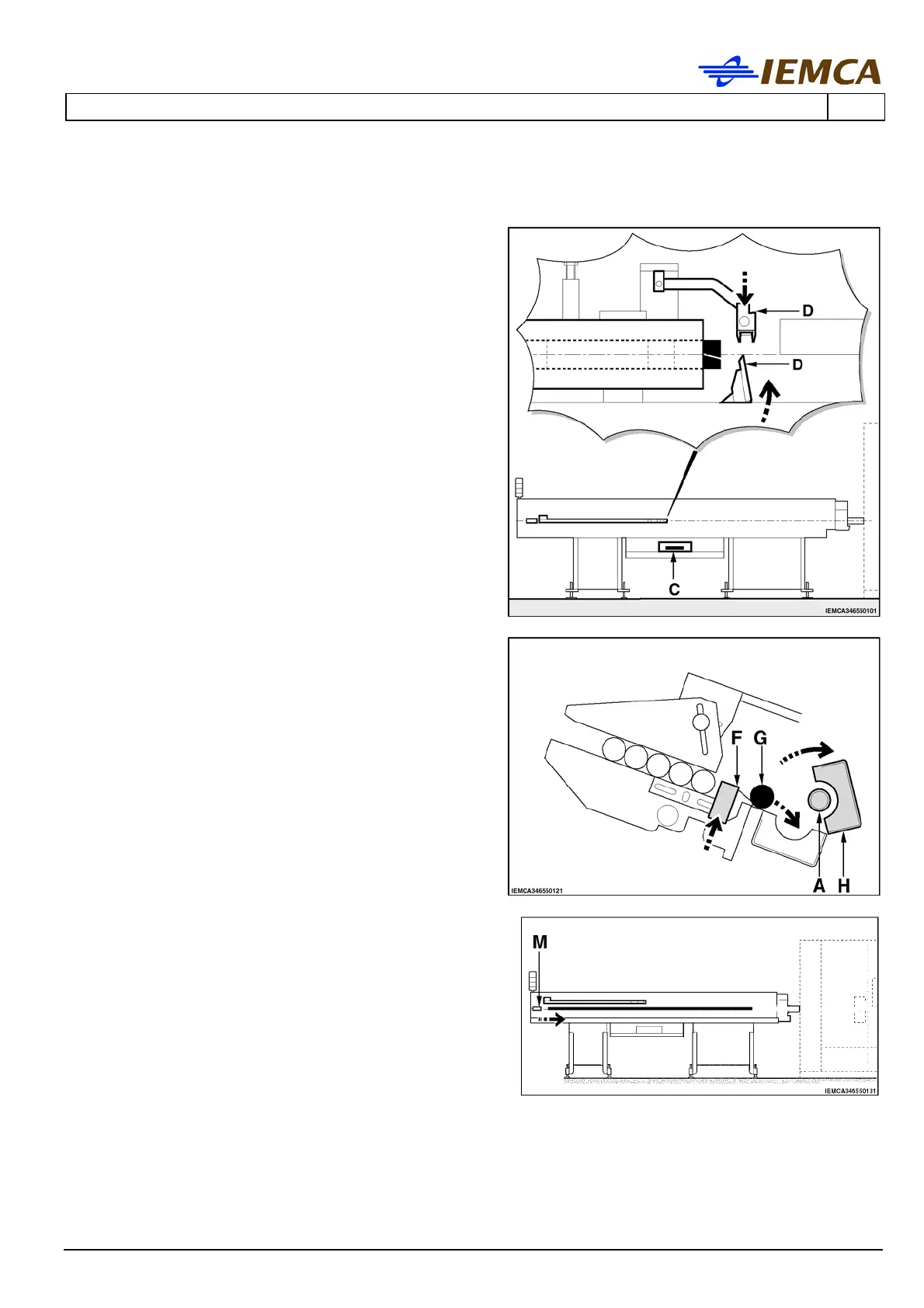

Clamps "D" close again to check remnant "C"
removal.
If the remnant is still inserted in the bar pusher
collet, the bar feeder stops; otherwise, it
continues its cycle.
Upper guide channels "H" open together with bar
pusher "A"; bar selector "F" moves upwards
thereby lifting the first bar and withholding the
remaining bars; bar "G" drops into the guide
channel.
Bar selector "F" is lowered.
The first feeding carriage "M" starts its stroke.
