EN
4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
4 - Pag. 16 / 32

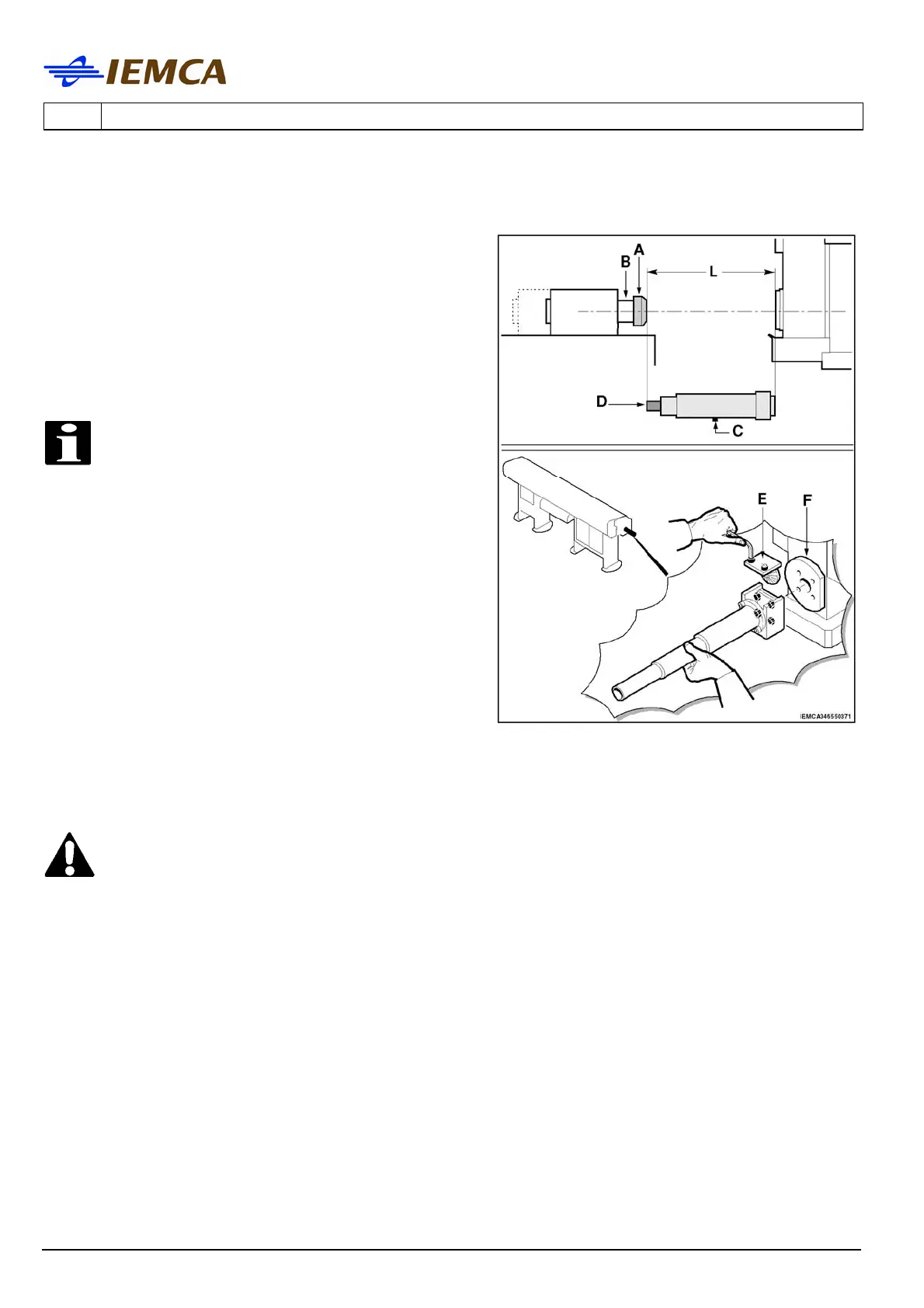

4.4.7 Telescopic front nose - Installation
If the bar feeder is equipped with a telescopic front
nose, proceed as described below.
• Remove the fixed sleeve that had been installed
to obtain alignment between the bar feeder and
the lathe.
• Fix the flange "A" (a general example is shown
in the figure).
INFORMATION:
the lathe spindle sleeve "B" should not
turn. If it does, a support or another
similar device should be fitted to
prevent telescopic front nose turning
after it has been installed.
• Move the headstock to its "completely
backwards" position and measure the value "L".
Take out the grub screw "C", press the
telescopic front nose to its limit stop minus 5
mm and cut the pipe "D" to the measured value.
• Move the headstock to its "completely forwards"
position. Remove the cover "E", install the front
nose in the flange "F" and place back the cover "E".
• Check smooth sliding of the telescopic front nose by moving the headstock forwards and
backwards.
DANGER - WARNING: Please, note that, by removing the telescopic front nose,
the bar feeder might be DANGEROUS to the operator and/or installation
technician due to bar pusher extension.
