IEMCA BOSS 545 E - 4.3 INSTALLATION AREA - FEATURES

4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
EN
4 - Pag. 7 / 32

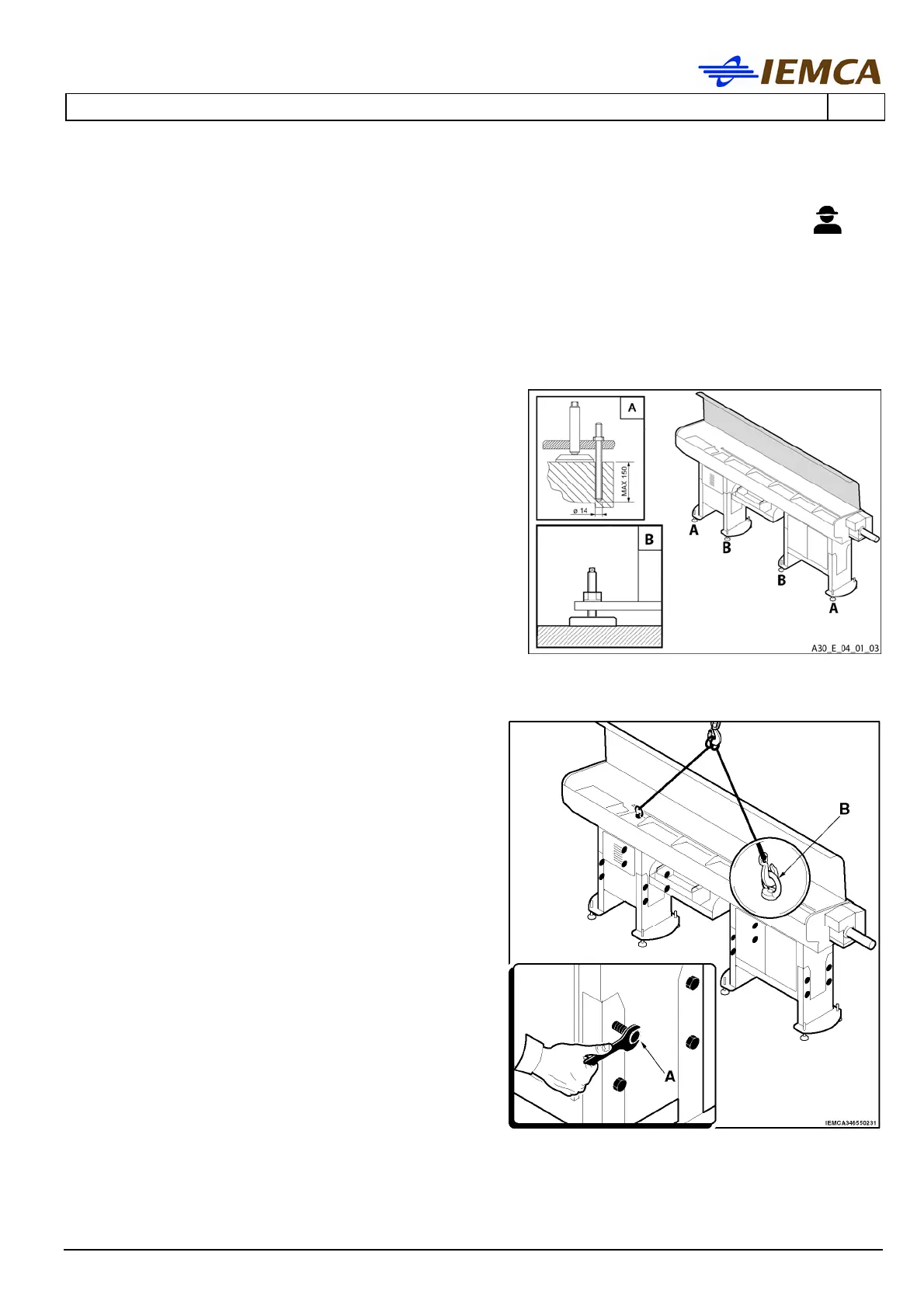

4.4 BAR FEEDER WITHOUT AXIAL DISPLACEMENT DEVICE - INSTALLATION
Before carrying out the bar feeder installation, check the lathe stability; make sure that it is
firmly fixed to the ground and that the spindle axis is perfectly in horizontal position.
4.4.1 Backing plates and support feet - Installation
• Position the bar feeder next to the lathe.
• Keep it lifted and fit the steel plugs "A" and
Marbet plastic plugs "B" as shown in the figure.
4.4.2 Height - Adjustment
The bar feeder is normally supplied with the
working axis height adjusted to the lathe height.
However, if an adjustment is needed, proceed as
follows:
• Refer to “Working axis height” table, in the
"Technical data" section (Ch. 6) for the correct
holes for each screw.
• tighten the lifting chains and remove the 16
screws "A".
• lift the bar feeder according to the required
value "X".
• tighten the "A" screws and remove the "B"
eyebolts.
