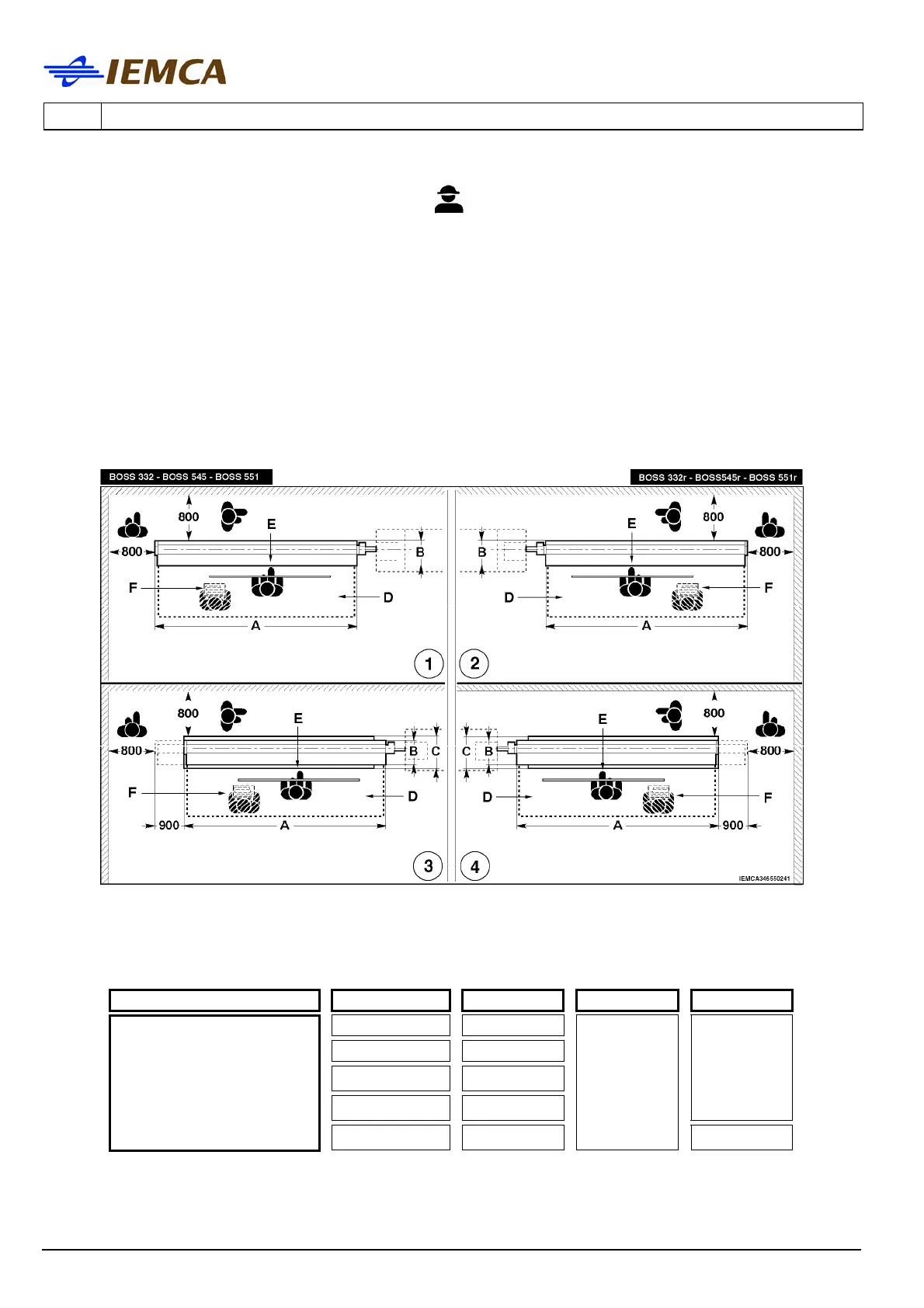

4.3 INSTALLATION AREA - FEATURES
The floor should be stable and levelled to guarantee good fastening to the ground.
Provide an area of suitable dimensions according to the type of bar feeder used.
The areas: "D" (work area), "E" (bar feeding area) and "F" (remnant ejection area) should be
properly delimited to prevent collisions between the operator and any handling equipment or
transport vehicles travelling near the bar feeder.
The selected area should be illuminated and provided with an electric and pneumatic power
supply socket.
During operation, the bar feeder will release small amounts of oil mist. Install the bar feeder in
a suitably ventilated area.
The bar feeder has not been designed for use in an explosive atmosphere.
1-2 Without axial displacement
3-4 With axial displacement
Overall dimensions
Model Version A (mm) B (mm) C (mm)
21 2603
32 3802
37 4342
44 5002
640
BOSS 332 - BOSS 332r
BOSS 545 - BOSS 545r
BOSS552 HD-BOSS552r HD
64 6382
605
/
