Hexagonal, square and section bars
With shaped bars, insert some bushes on the bar to
be controlled.
Position 2 bushes on both V-supports.

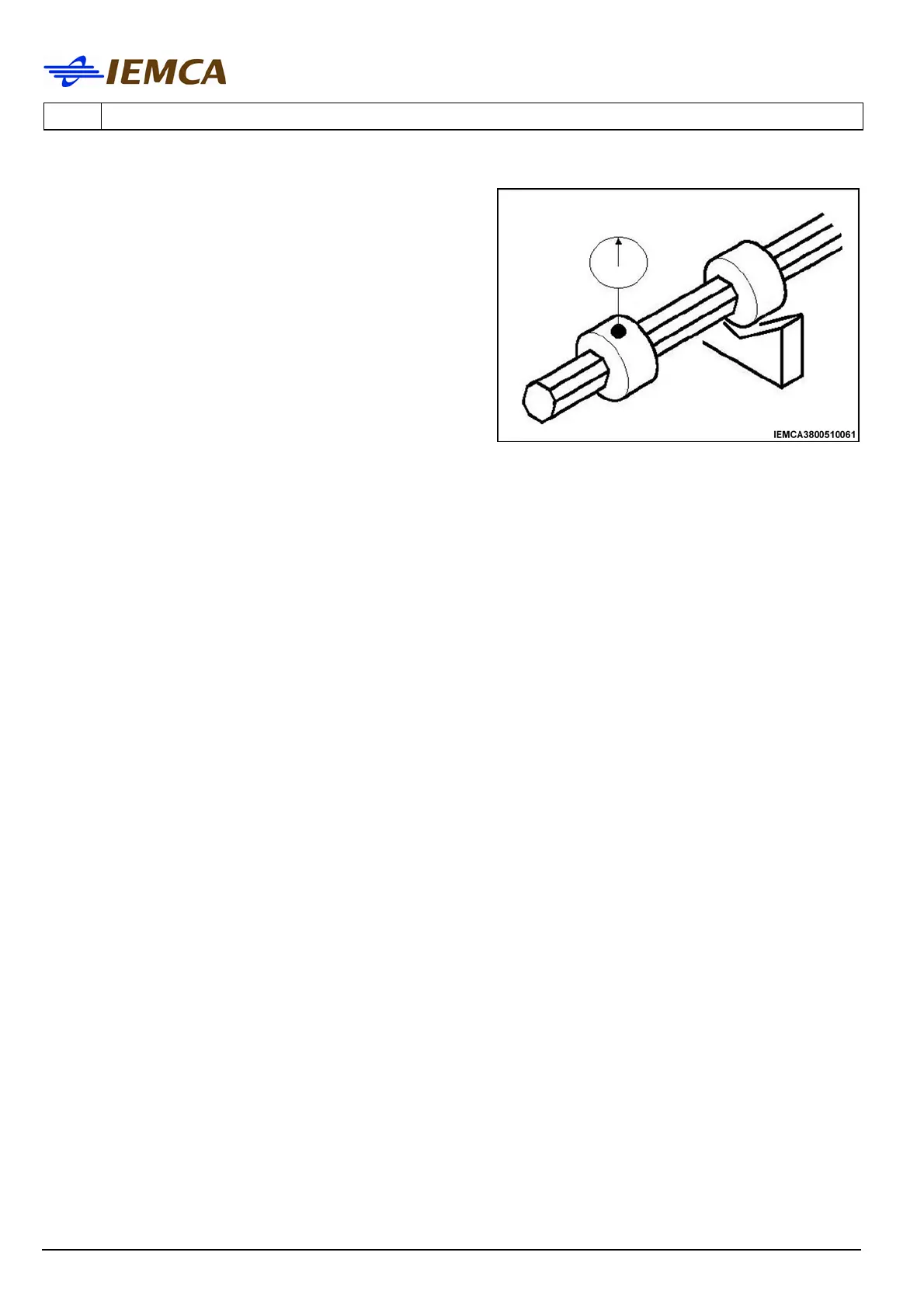

In that case, the measurement can be carried out
as shown in the figure.
Rotate the bar on itself and carry out the
measurement on a bush external to both V-
supports.
