5 - ADJUSTMENTS AND SETTING-UP BOSS 332/545/552 HD

5 - Pag. 32 / 34

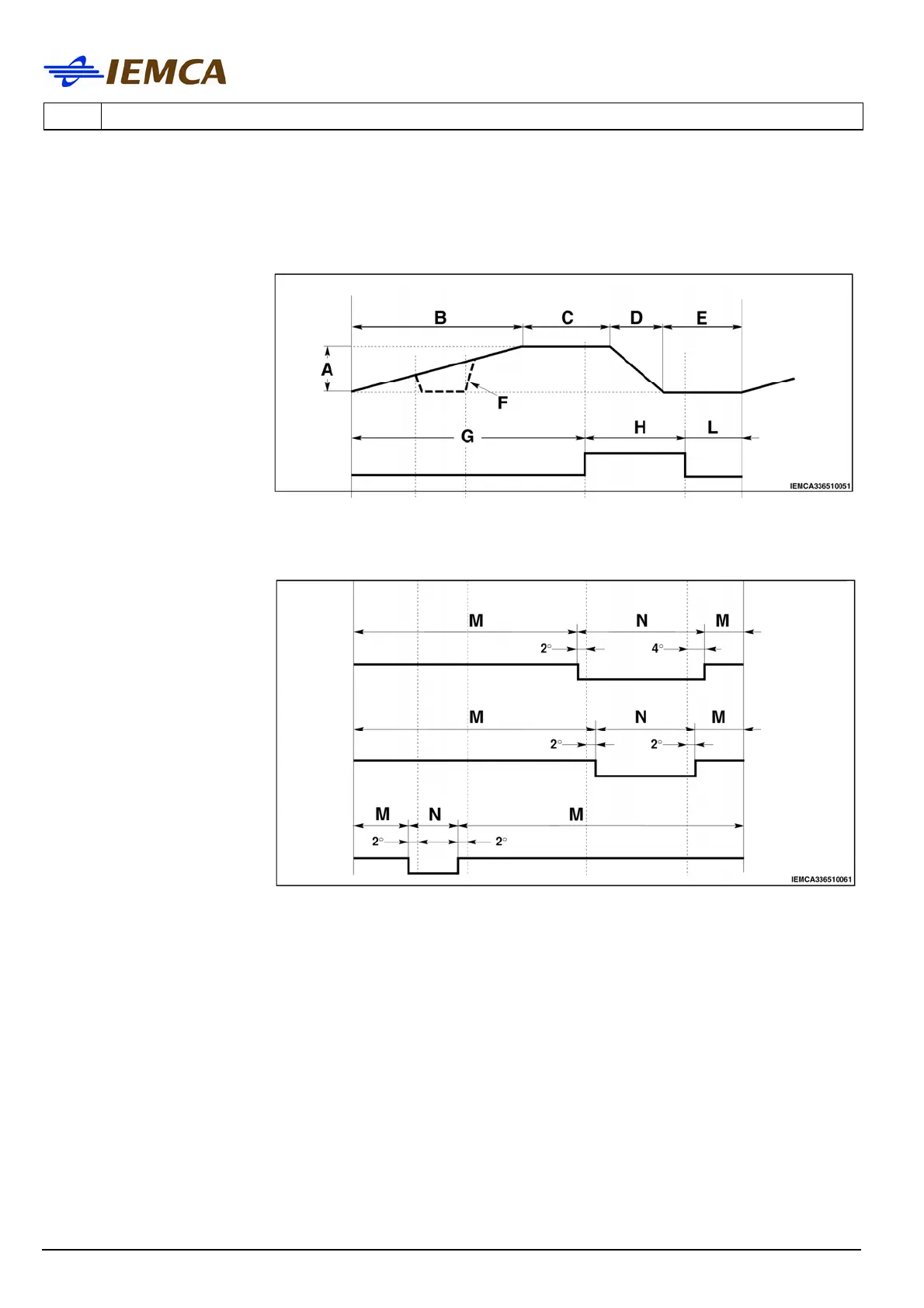

CAM TIMING

LATHE CAM COMPLETE CYCLE

PHASE HEADSTOCK

PHASE COLLET LATHE

BAR FEEDER CAM COMPLETE CYCLE

PHASE MICROSWITCH

S90

PHASE MICROSWITCH

S91

PHASE MICROSWITCH

S92

A STROKE G CLOSED

B FEEDING H OPEN

C FORWARD STOP L CLOSED

D RETURN M DISABLED

E BACKWARD STOP N DISABLED

F Possible headstock return with closed collet for special operations
