4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
EN
4 - Pag. 27 / 32

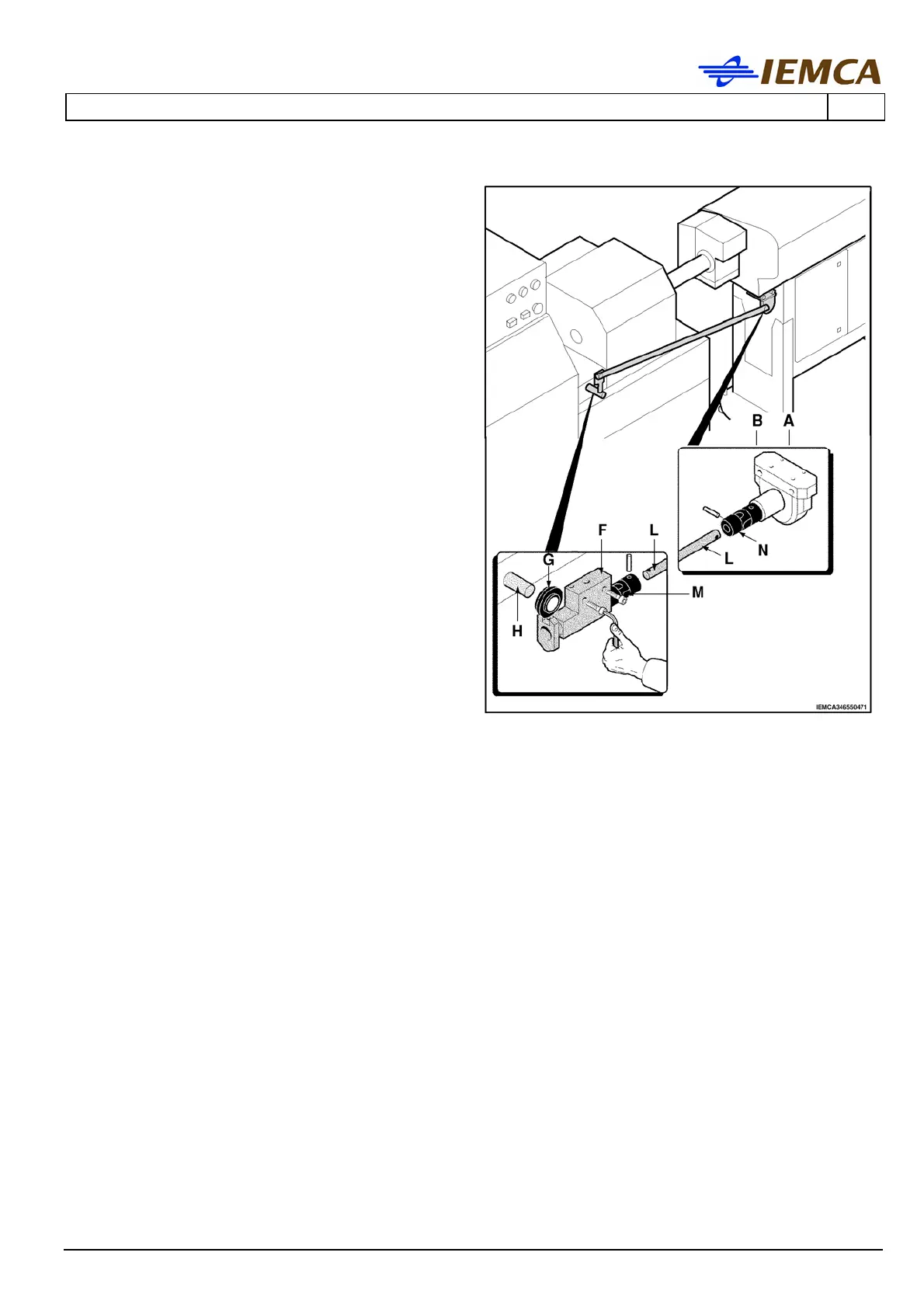

Axial version
• Drill and thread the lathe housing to fix the
transmission unit "F" and assemble the disk
"G" in the control "H".
• Insert the shaft "L" in the joint "M" and lock
it with a pin; insert the other end of shaft
"L" in joint "N" and lock it with a pin.
