4 - HANDLING AND INSTALLATION BOSS 332/545/552 HD
4 - Pag. 32 / 32

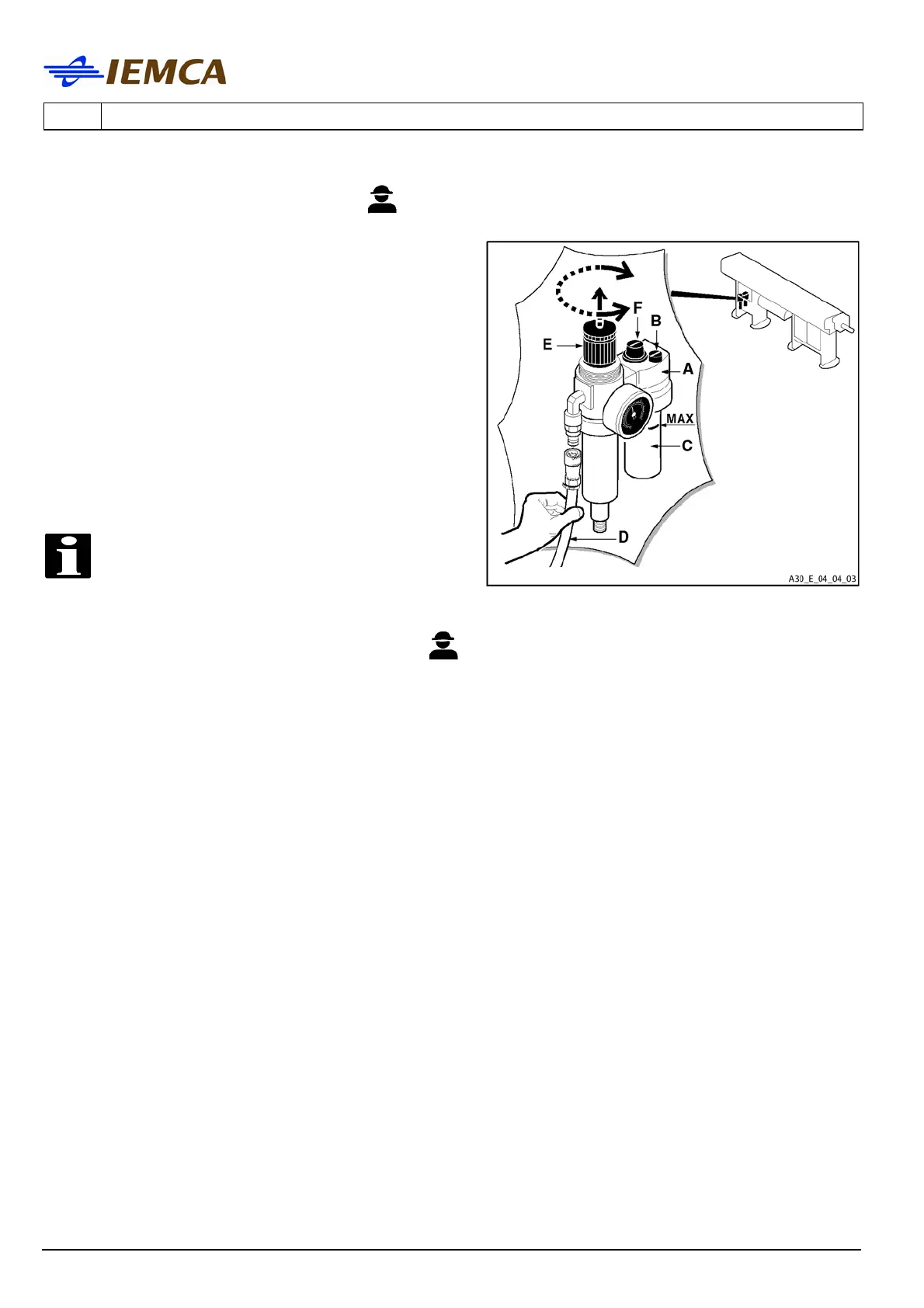

4.10 PNEUMATIC CONNECTION
• Fill the tank of lubricator "A" removing plug "B"
or cup "C"; the oil level must reach the MAX.
reference.
See the "Technical Data" section, Ch. 6, for the
oil comparative table.
• Connect the pipe of the pneumatic network to
the coupling D (1/4"Gas). Install a 3-way cock
at the beginning of this connection so as to
perform the sectioning and the pressure
release. By means of the knob "E", adjust the
pressure to 6 bar.
• Check air lubrication (1-12 drops per 1,000 l of
air); adjust by turning the screw "F".
IMPORTANT:
the supply air must be filtered.
4.11 SOFTWARE PARAMETERIZATION
The bar feeder software should be correctly parameterized according to the working needs and
the lathe type.
For further information on how to carry out this operation, check the "Keyboard instruction
manual".
