10 - GUIDE CHANNELS - BAR PUSHER - REVOLVING TIPS BOSS 332/545/552 HD
EN
10 - Pag. 15 / 16

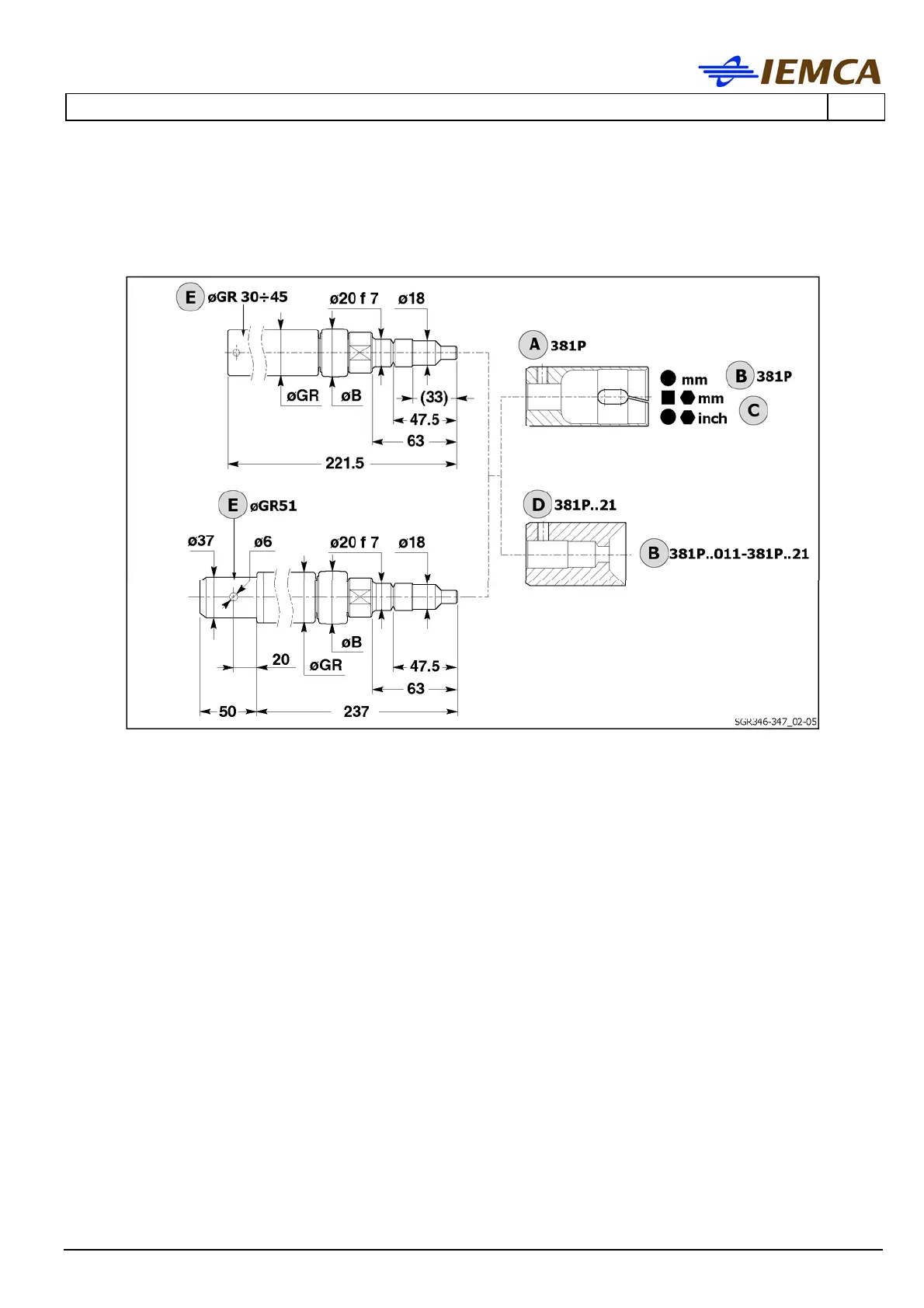

10.6 Revolving tips ØGR 30÷51 - Table
• For collets with quick coupling screw
A Collet
B See file
C See file - 001
then - 381P
D Ejector
E Revolving tip
CH*: double-ended fork wrench DIN3110
