11 - COLLETS BOSS 332/545/552 HD
11 - Pag. 10 / 34

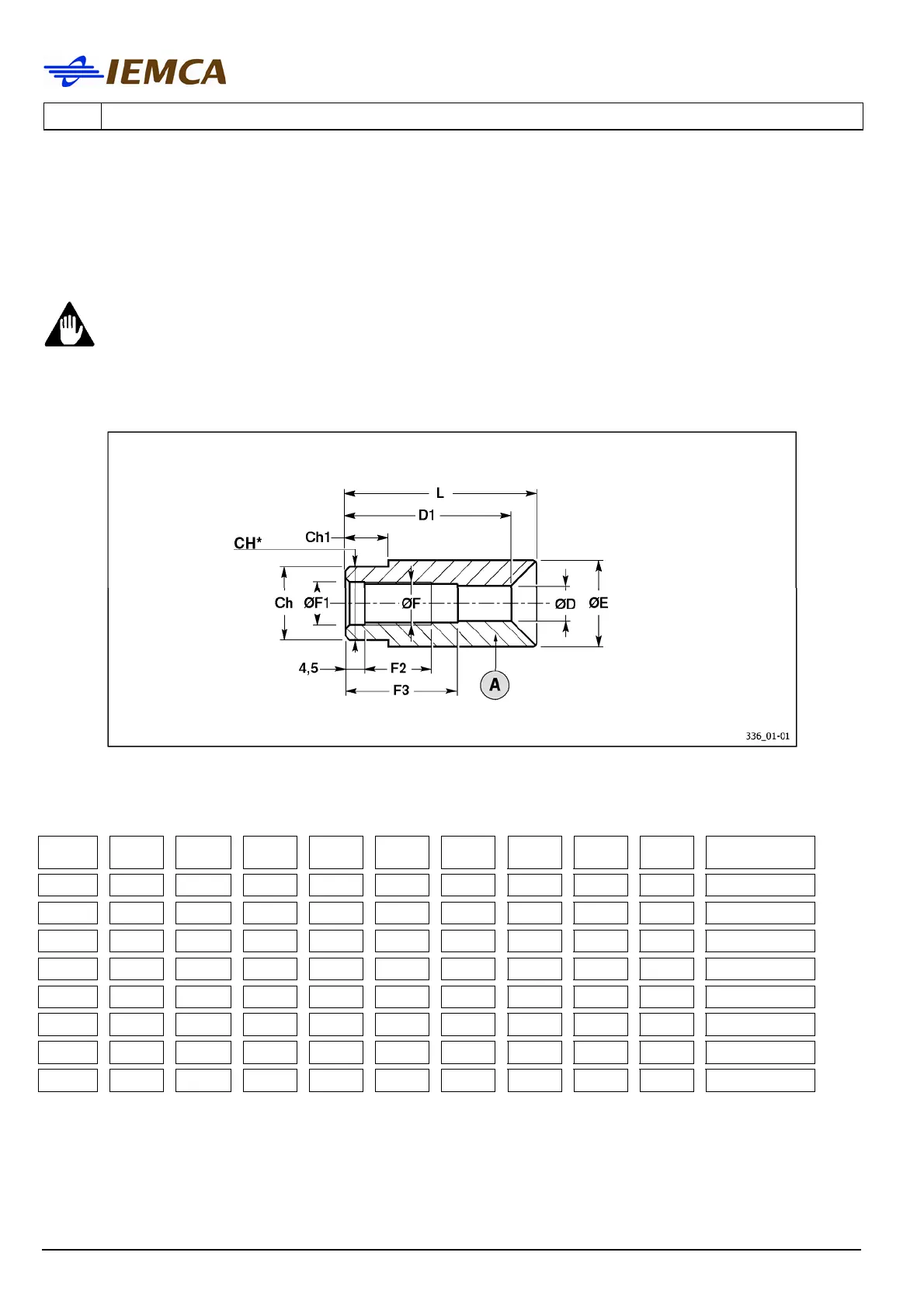

11.7 EJECTOR 336
11.8 EJECTORS - Guide channels Ø<30 - Table
WARNING – CAUTION:
the external diameter of the ejector must be at least 0.5 mm less than the
external diameter of the bar pusher.
CH*: double-ended fork wrench DIN3110
A Ejector
øF
F1
(mm)
F2
(mm)
F3
(mm)
øE
(mm)
L
(mm)
øD
(mm)
D1
(mm)
Ch
(mm)
Ch1
(mm)
Code no.
M7x0.75 7 12 18 12 29.75 5.5 26.5 10 6 336803120
M8x1 8 12 18 15 30.75 6.5 26.5 13 10 336803150
M8x1 8 12 18 18 32 6.5 26.5 15 10 336803180
M10x1 10 15.5 26 20 44.4 8.2 38.5 17 10 336803200
M10x1 10 15.5 26 23 46 8.2 38.5 19 10 336803230
M10x1 10 15.5 26 25 47 8.2 38.5 22 12 336803250
M10x1 10 15.5 26 27 48 8.2 38.5 24 12 336803270
M10x1 10 15.5 26 29 49 8.2 38.5 27 12 336803290
