11 - COLLETS BOSS 332/545/552 HD
11 - Pag. 12 / 34

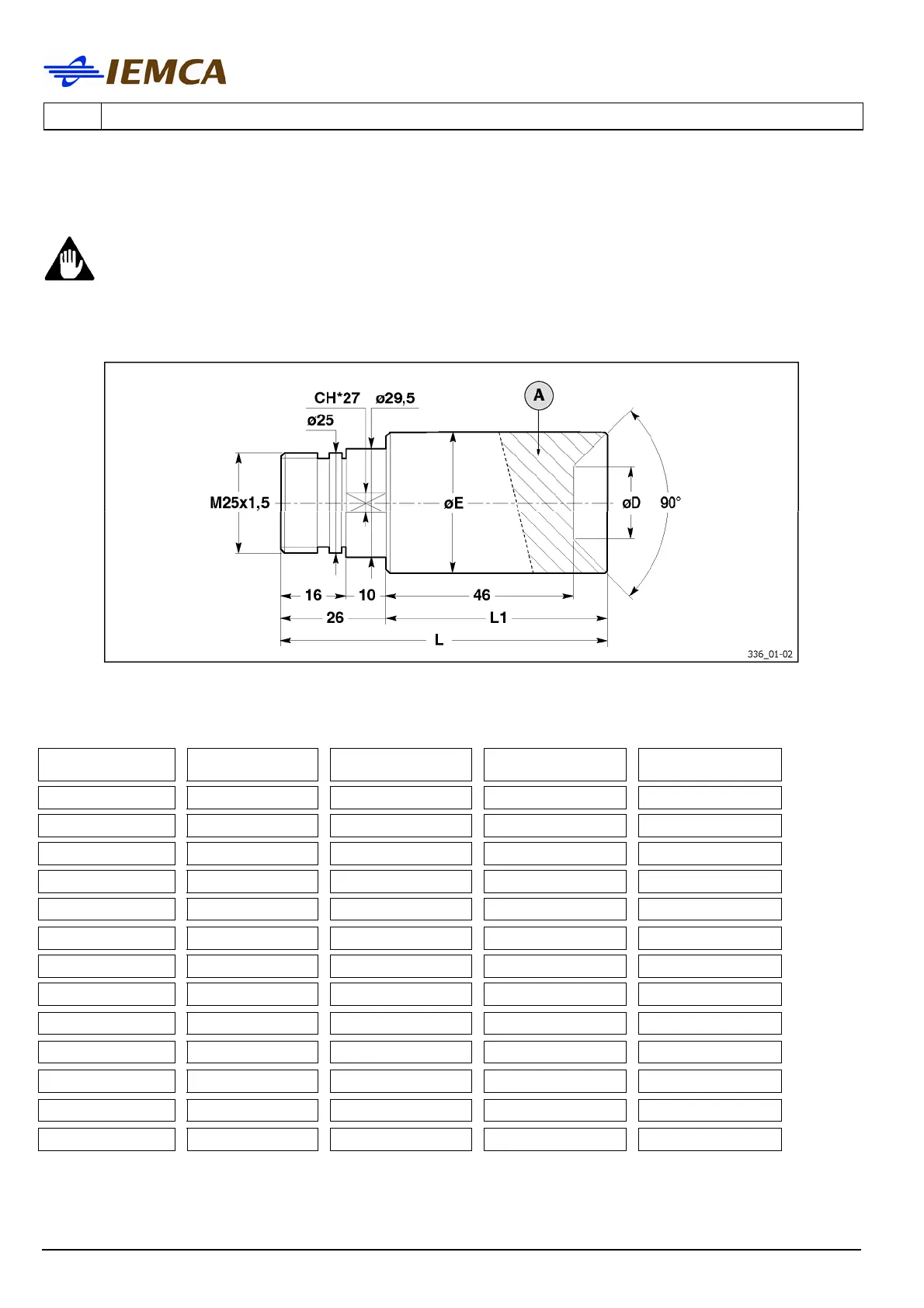

11.9 EJECTORS - Guide channels Ø>32 - Table
WARNING – CAUTION:
the external diameter of the ejector must be at least 0.5 mm less than the
external diameter of the bar pusher.
CH*: double-ended fork wrench DIN3110
A Ejector
øE
(mm)
øD
(mm)
L
(mm)
L1
(mm)
Code no.
31 10 82.5 56.5 336803310
32 14 81 55 336803320
35 18 80.5 54.5 336803350
40 18 83 57 336803400
42 18 84 58 336803420
44 20 84 58 336803440
45 21 84 58 336803450
50 23 84 58 336803500
52 25 84 58 336803520
55 28 84 58 336803550
60 33 84 58 336803600
65 38 84 58 336803650
70 43 84 58 336803700
