11 - COLLETS BOSS 332/545/552 HD
11 - Pag. 24 / 34

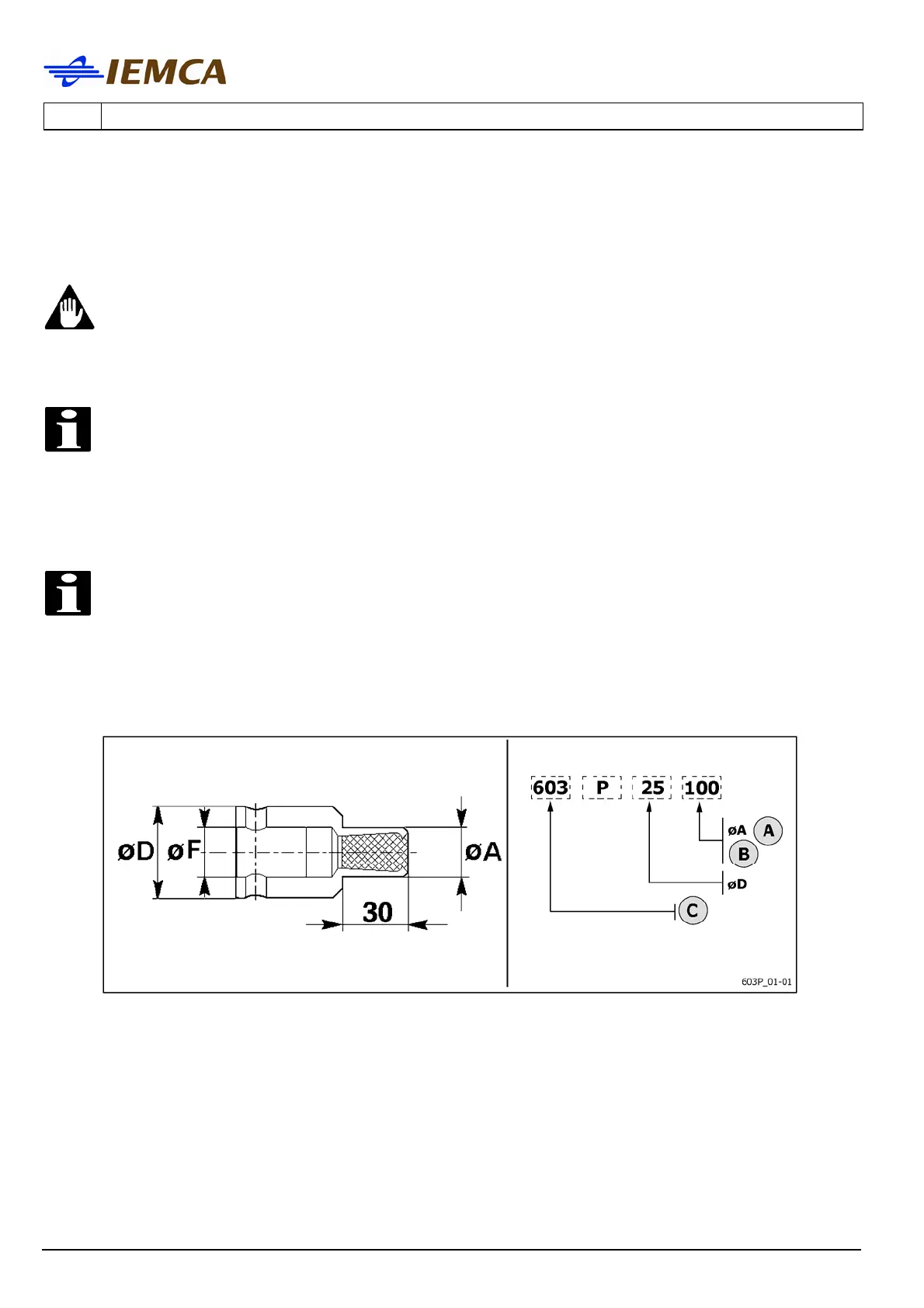

11.20 PIPE COLLETS 603P
11.21 PIPE COLLETS - Table
WARNING – CAUTION:
the collet external diameter should be at least 0.5 mm smaller than the bar
pusher external diameter.
INFORMATION:
For the 603P collets..... fitted with a quick coupling, allowing the assembly on
the revolving tips, are designed with an oversized length. Therefore, the first
feeding value of the bar pusher carriage shall be increased of 7.5 mm with
respect to the standard value.
INFORMATION:
upon specific request, non standard collets with reduced thickness (which are
not mentioned in this table) may be supplied as well. Their durability is however
below the durability of standard collets.
Code structure
A Bar diameter
B Example:
5 mm = 060
10 mm = 100
12.5 mm = 125
C Category
