11.26 EJECTORS 381P..011 - 381P..021

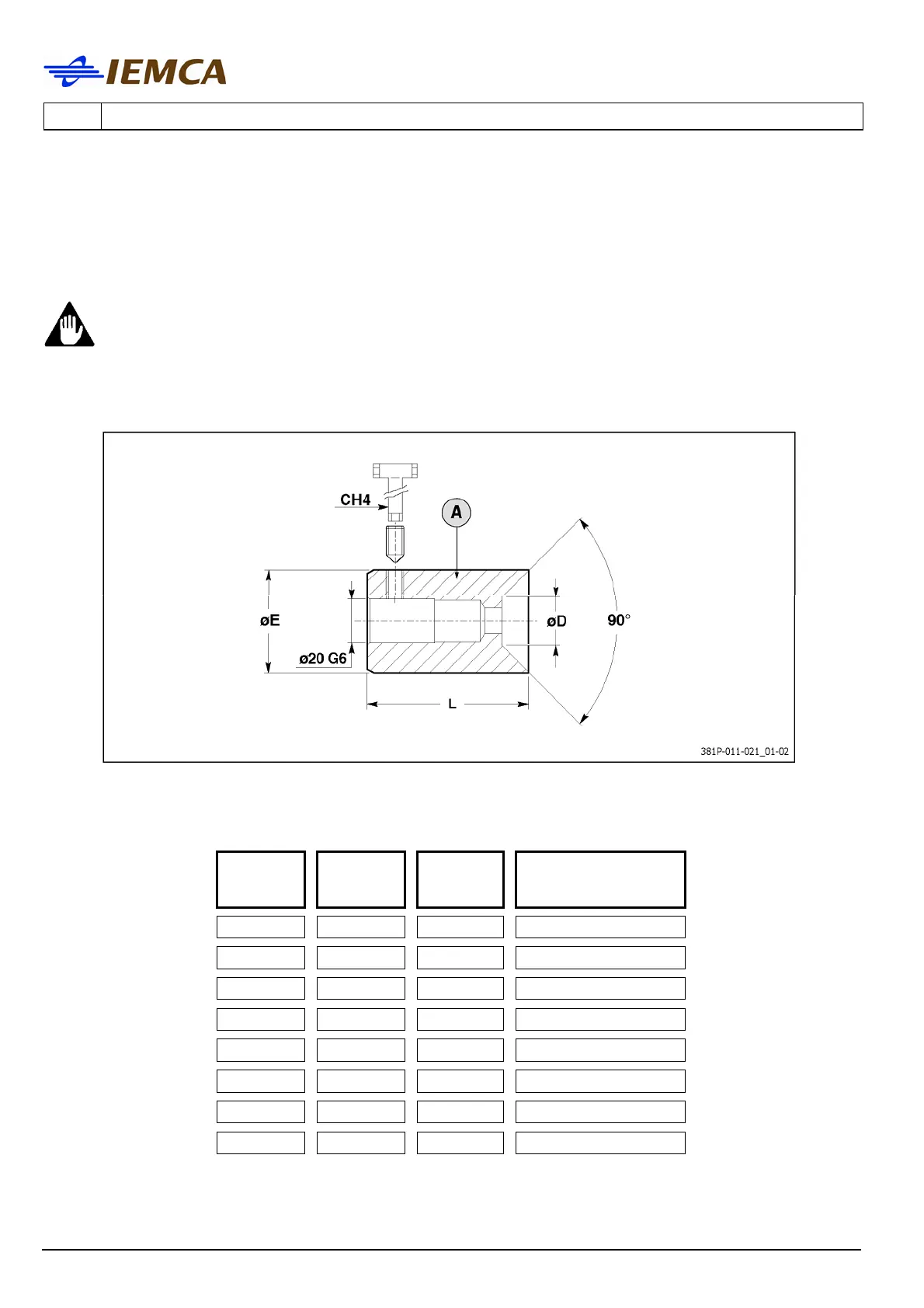

11.27 381P..021 EJECTORS - Guide channels Ø33÷46 - Table
WARNING – CAUTION:
the external diameter of the ejector must be at least 0.5 mm less than the
external diameter of the bar pusher.
CH4: T Allen wrench - DIN 911
A Ejector
øE
(mm)
øD
(mm)
L
(mm)
Code no.
30 12 69 381P30021
31 13 70 381P31021
32 14 71 381P32021
35 18 69 381P35021
37 18 70 381P37021
40 18 71.5 381P40021
42 18 72.5 381P42021
45 21 72.5 381P45021
