6 | Installation INFICON
104 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
11
Swage the 1/16 in. OD stainless steel tubing to the Micro GC Fusion 1/16 in.
front inlet using a 5/16 in. wrench.
12

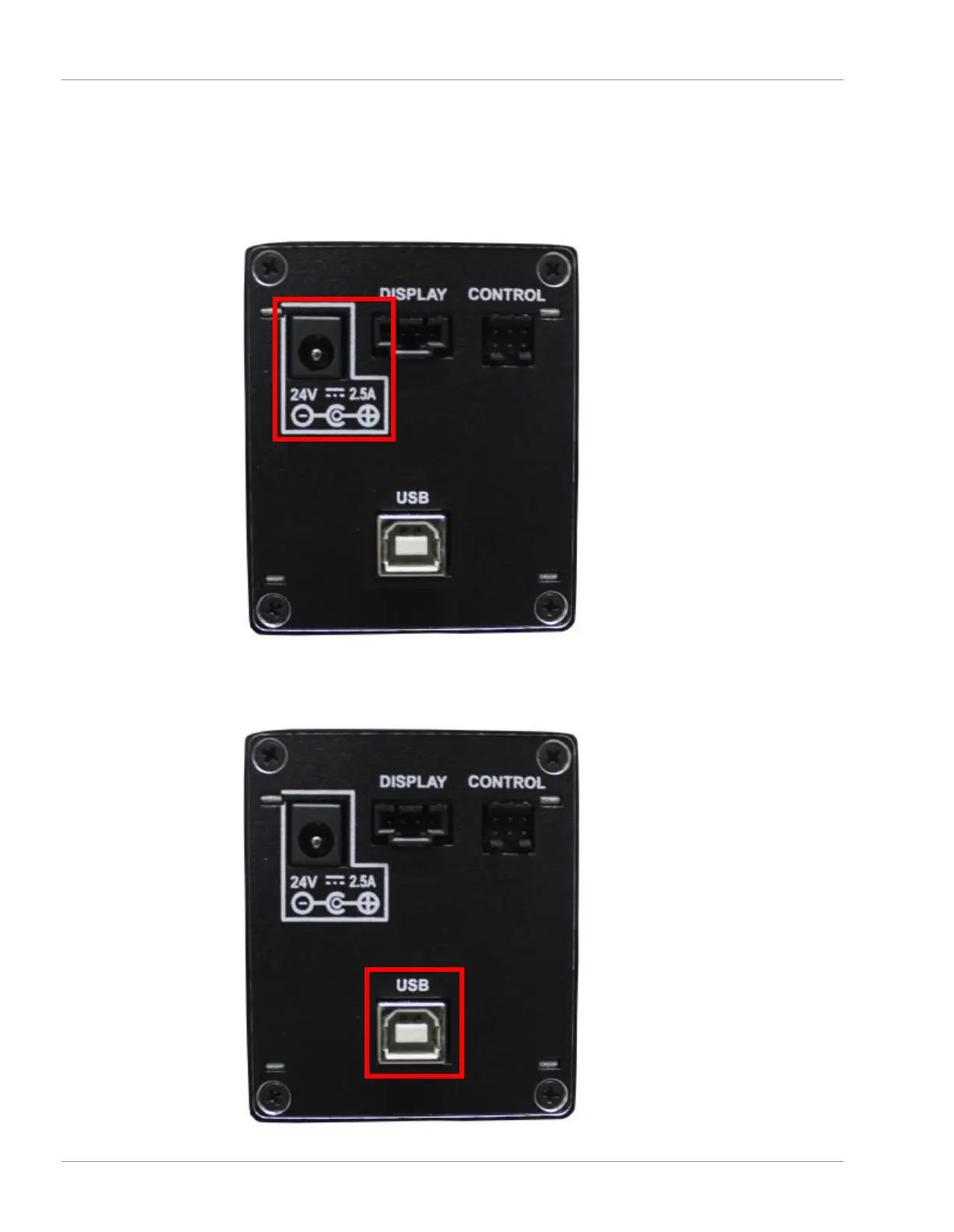

Plug the DC power connector on the power supply into the back of the Valco
stream selector. Connect the AC power connector on the power supply into a
100-240V (ac) power source.
13
Connect the USB Type B connector of the USB cable to the back of the Valco
stream selector. Connect the USB Type A connector of the USB slot in the back
of Micro GC Fusion.
