Inficon Micro GC Fusion 2-Module

INFICON Software Operation | 9
074-594-P1H Micro GC Fusion Operating Manual 221 / 319
6

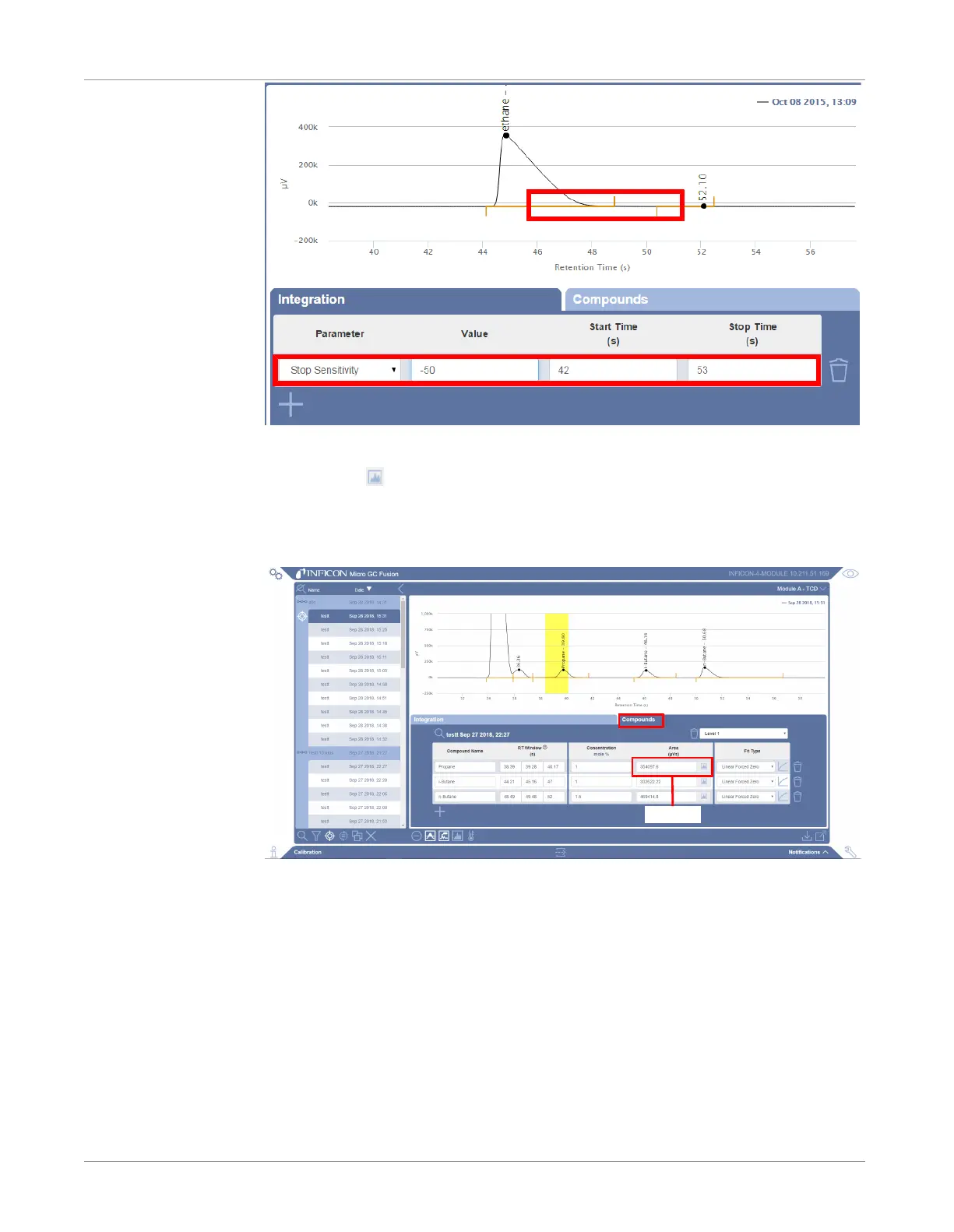

Click the
Compounds
tab.
7
Click the icon next to the edited compound to populate a new area count. If
the selected run is not the calibration reference data file, the calibration reference
data file will open to acquire the new data to update the area. This insures
consistency in respect to which data file was used to perform the calibration.
354097.6 uV
