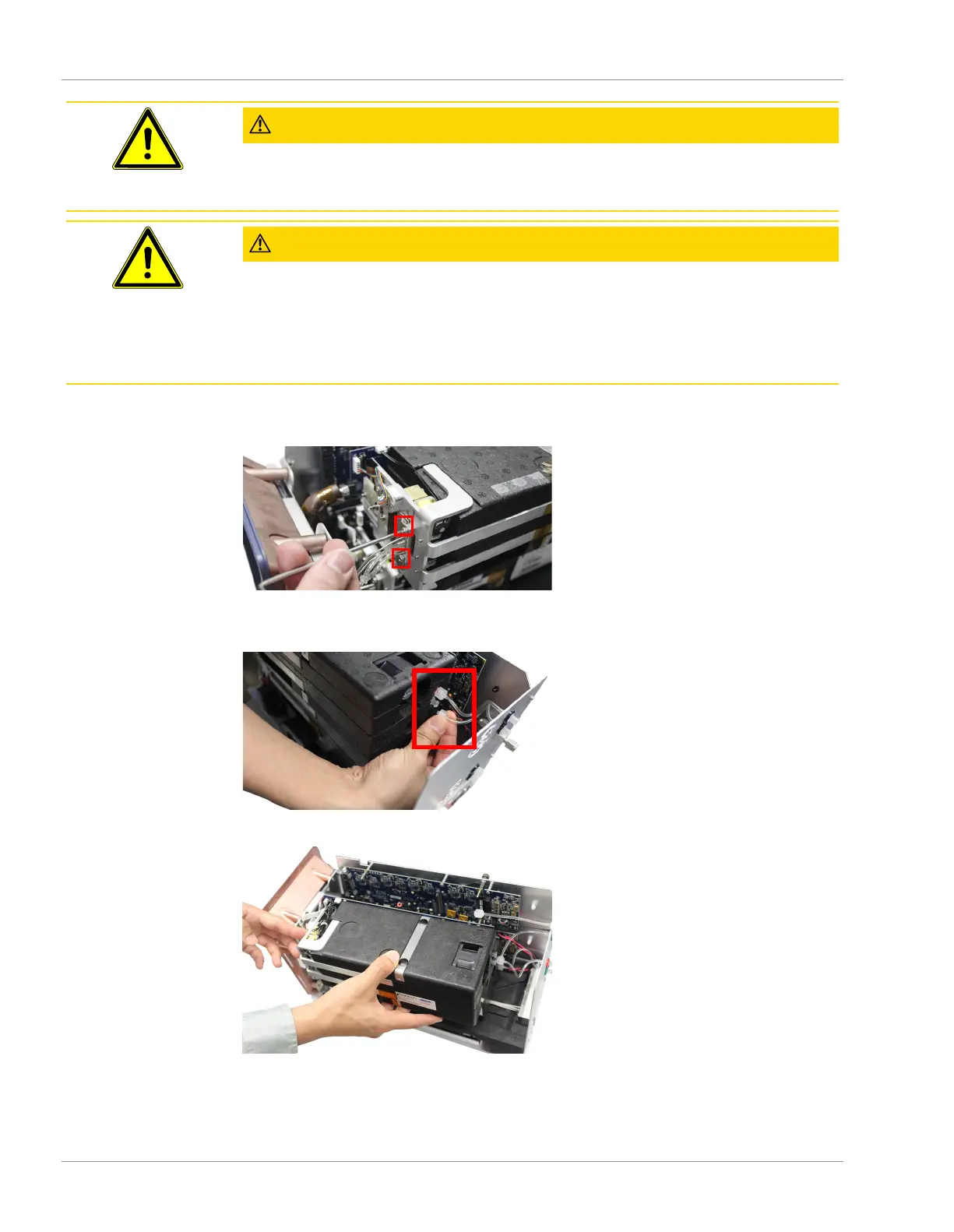

CAUTION
The Micro GC Fusion power cable must be disconnected before module
removal operation to prevent potential electrical damage to the instrument.
CAUTION
When removing the module, do not lift from the bottom. Pull the module
straight out and away from the standoffs and the electrical connector. Lifting
from the bottom may cause damage to both connectors and cause failures
when the module is reinstalled or replaced.
12
Using a 2.5 mm ball point hex driver, unscrew the two carrier gas manifold
screws on the upper GC module.
13
Loosen and remove the venting connectors at the rear of the GC module by
turning counterclockwise.
14
Remove the GC module by lifting it and pulling it sideways out of the chassis.
15
Repeat the same procedure (steps 9-14) to remove the lower module, if
necessary.
