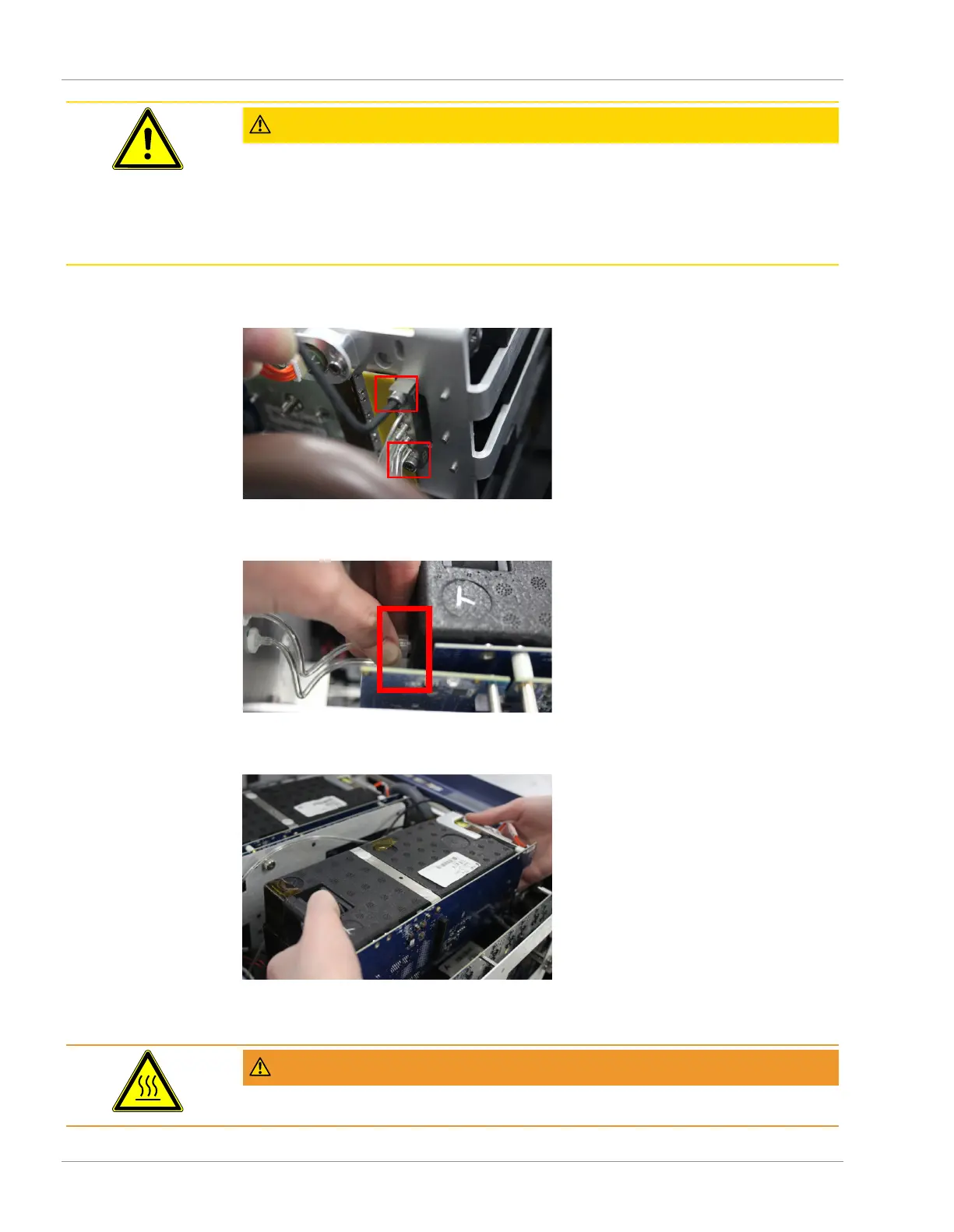

10 | Routine Operation INFICON
276 / 319 074-594-P1H Micro GC Fusion Operating Man-
ual
CAUTION
When removing the module, do not lift from the bottom. Pull the module
straight out and away from the standoffs and the electrical connector. Lifting
from the bottom may cause damage to both connectors and cause failures
when the module is reinstalled or replaced.
13
Using a 2.5 mm ball point hex driver, unscrew the two carrier gas manifold
screws on the upper GC module.
14
Loosen and remove the venting connectors at the rear of the GC module by
turning counterclockwise.
15
Remove the GC module by pulling it sideways and then lifting straight up out of
the chassis.
16
Repeat the same procedure (steps 9-14) to remove the lower module, if
necessary.
WARNING
Micro GC Fusion has a heated inlet which is hot to the touch.
