Hardware Installations and Upgrades
Intel
®
Entry Storage System SS4000-E User Guide 139
Installing the Enclosure Cover
1. Observe all safety and ESD precautions listed in Appendix H, “Safety Information”.
2. Align the guide on the left and right sides of the enclosure cover with the edge at the
bottom of the chassis and slide the enclosure cover downward. See letter “A” in the
following figure. Secure the enclosure cover to the chassis with four screws. See letter
“B”.

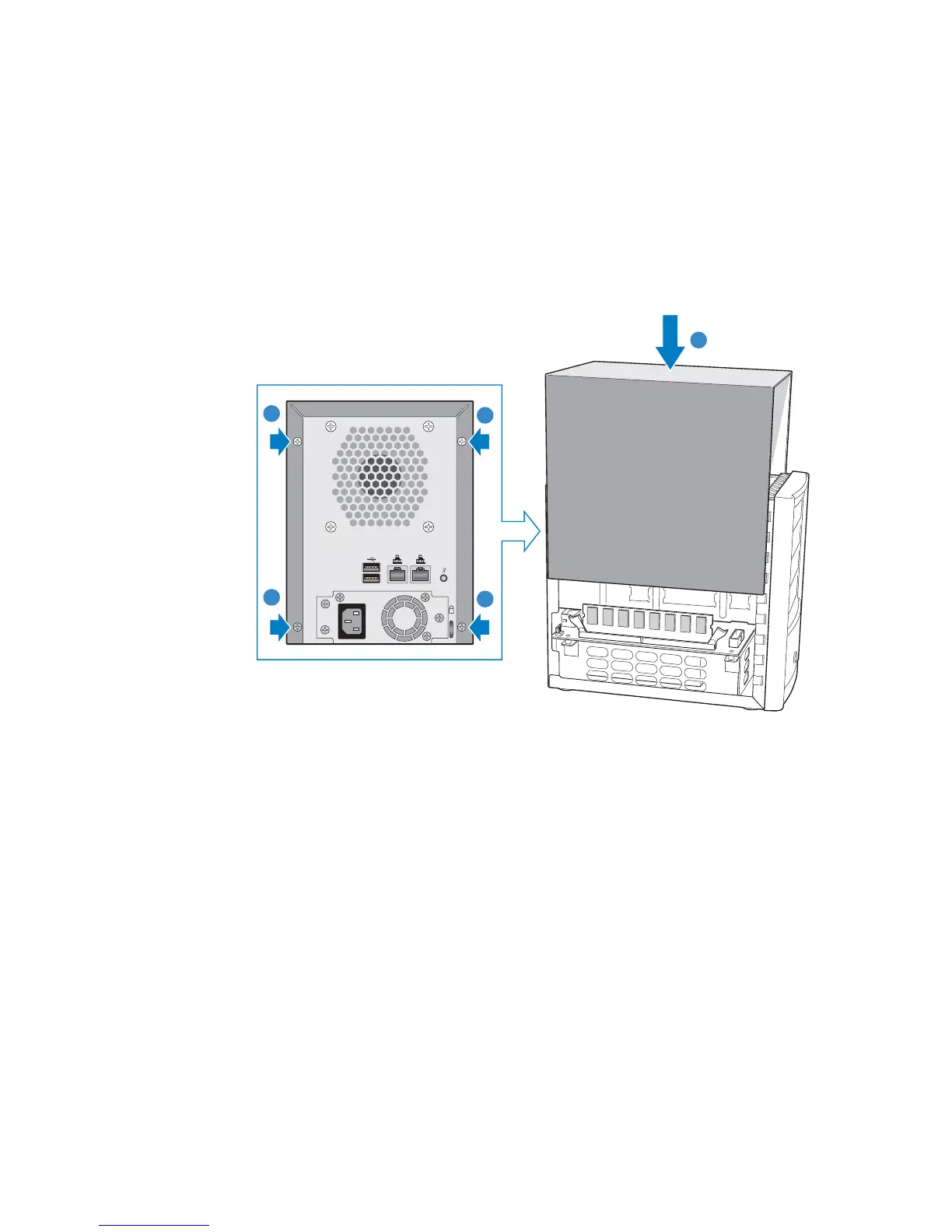

Figure 14. Installing Enclosure Cover
3. Reconnect the storage system to its power source.
4. Power up the storage system by pressing the power button on the front of the unit. The
System Status LED flashes green while the system is booting up.
AF000240
B
B
B
B
A
K
To Next Page
