Intel SS4000-E - Entry Storage System NAS Server User Manual

Hardware Installations and Upgrades
Intel
®
Entry Storage System SS4000-E User Guide 157
11. Re-install the four drive carriers into the chassis making sure to re-install each drive
carrier into its original slot.
Note: Ensure each drive carrier is re-installed in its proper location.

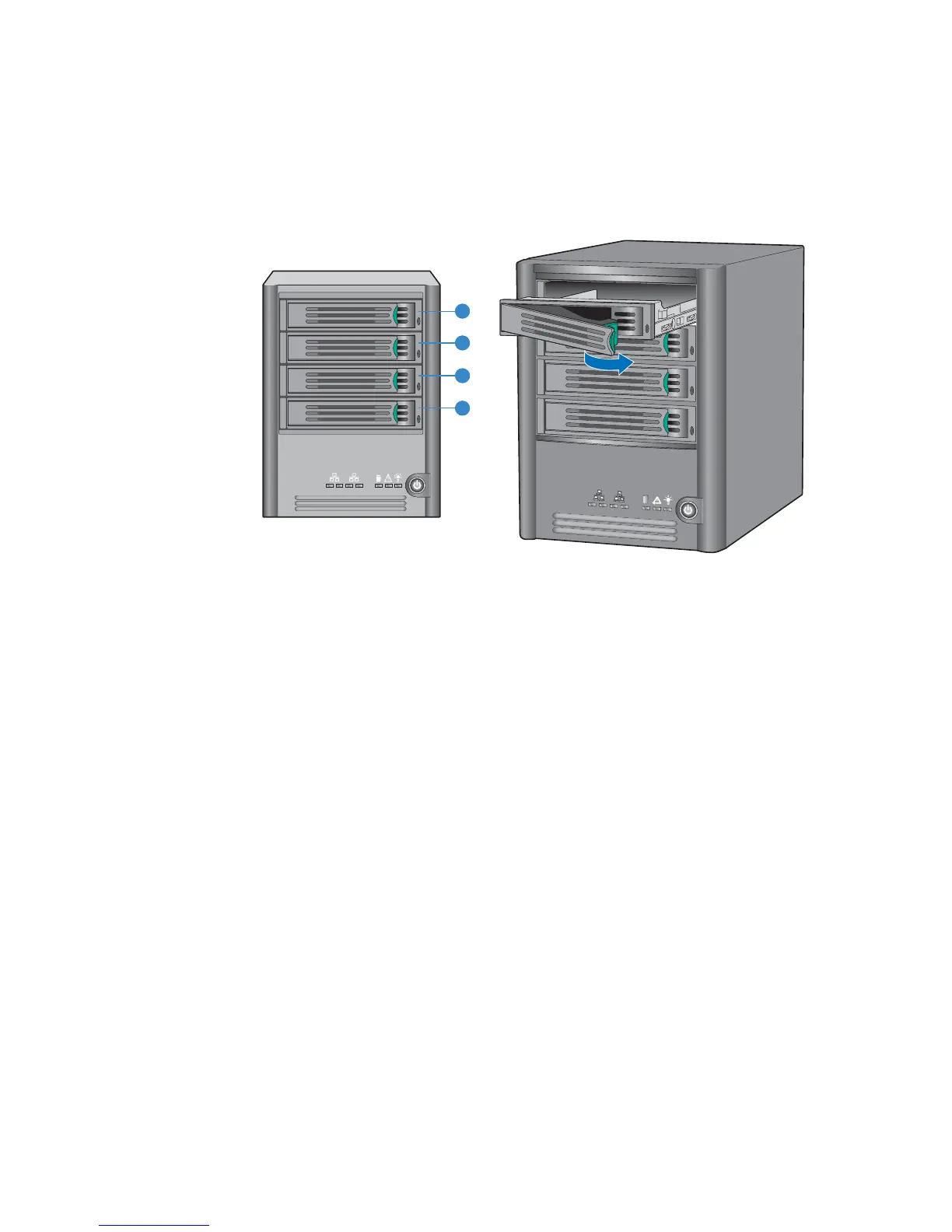

Figure 36. Re-installing Drive Carriers
AF000300
1
2
4
3
2
1
1
2
3
4
1
2
4
3
2
1
