9. Before installing the new system fan, note the direction of airflow. Fan airflow exits
the back of the chassis. See letter “A” in the following figure. Slide the new system
fan into the chassis. See letter “B”. Align the holes in fan assembly with holes in
chassis. See letter “C”. Secure the new system fan to the chassis with four screws.
Route the fan cable through the opening provided in the chassis. See letter “D”.
Connect the system fan power cable to its connector on the system board. See letter
“E”.

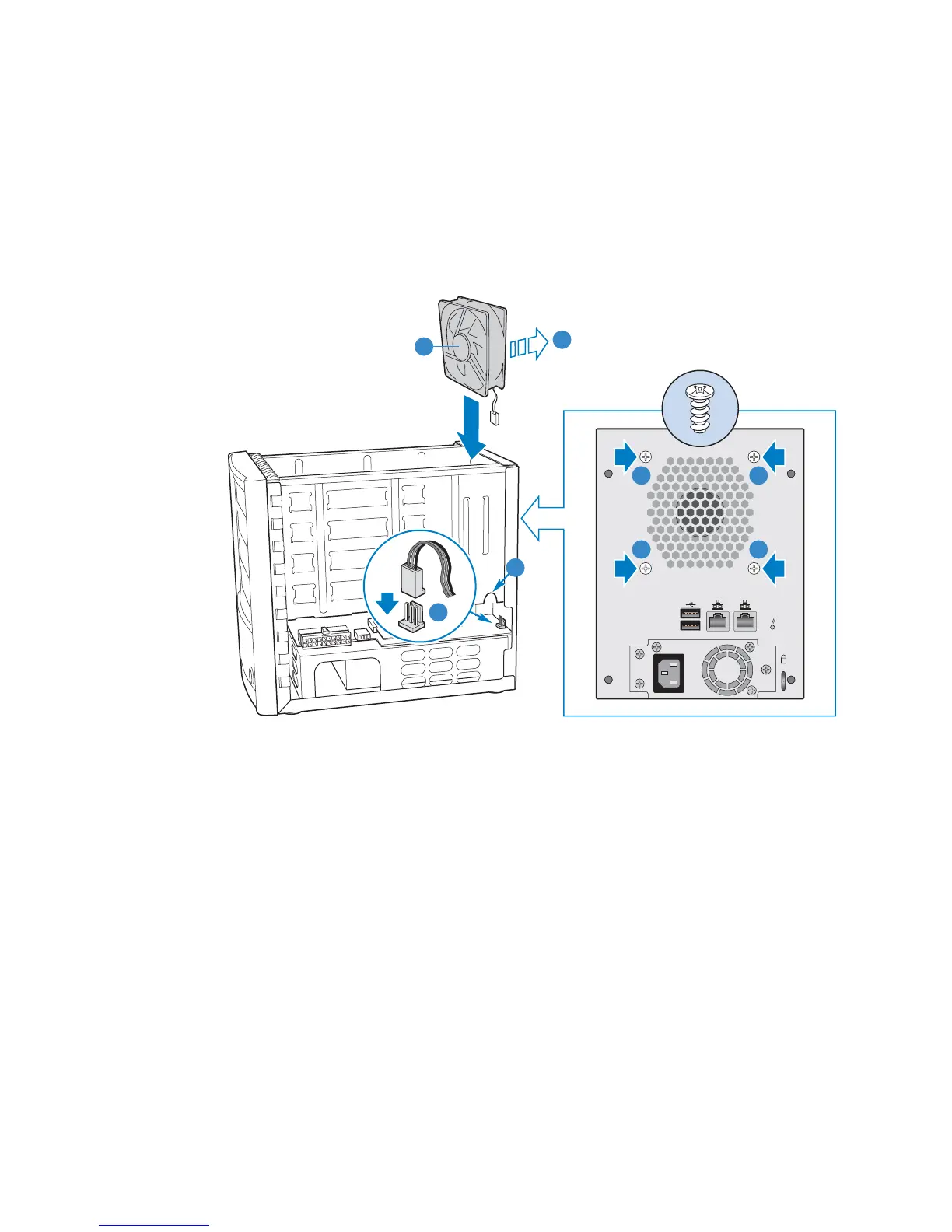

Figure 34. Installing New System Fan
AF000298
CC
CC
K
B
E
A
D
