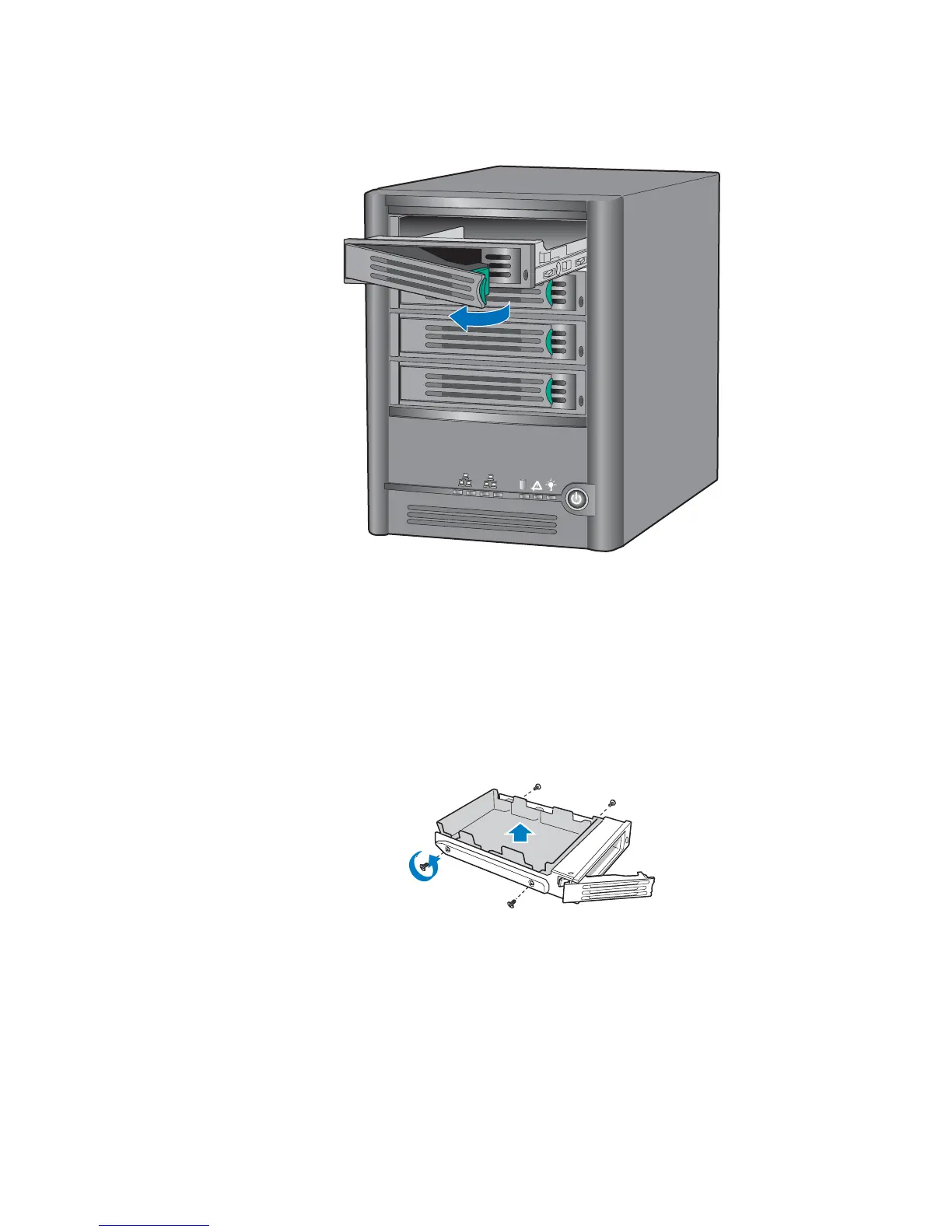

Figure 4. Removing Drive Carrier from Storage System
4. Remove the four screws that attach the plastic baffle to the drive carrier. Two screws
are located on each side of the drive carrier.
Note: Store the plastic baffle for future use.
Figure 5. Removing Baffle from Drive Carrier
