Intel SS4000-E - Entry Storage System NAS Server User Manual

Hardware Installations and Upgrades
156 Intel
®
Entry Storage System SS4000-E User Guide
10. Slide the backplane assembly into the guides on each side of the chassis See letter “A”
in the following figure. Ensure the backplane assembly fully connects to its connector
on the system board. See letter “B”. Secure the backplane assembly to the chassis with
four screws, two per side. See letter “C”.

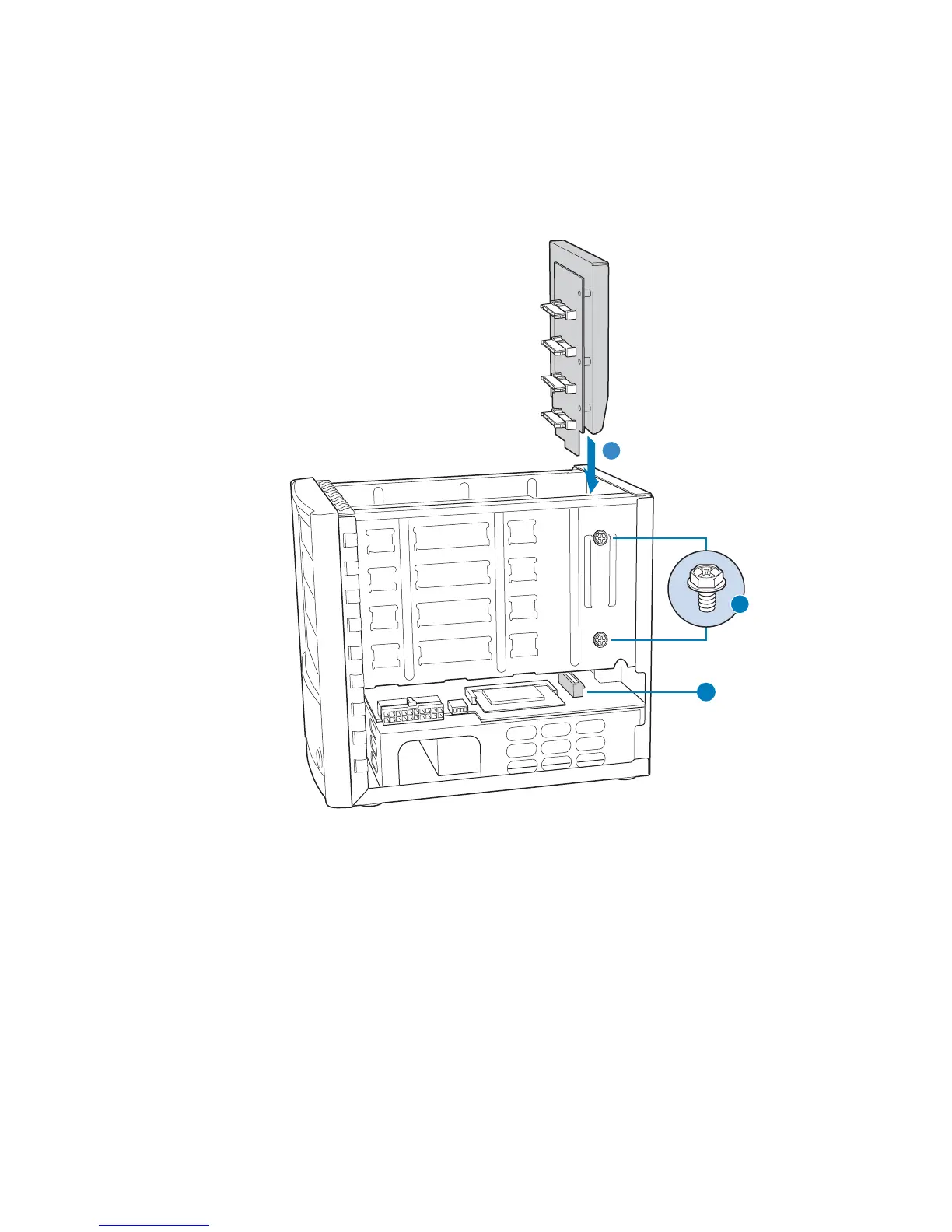

Figure 35. Re-installing Backplane Assembly
AF000299
C
A
B
