Getting Started
14 Intel
®
Entry Storage System SS4000-E User Guide
8. With the lever in the fully open position, insert the drive carrier into the storage
system. The green latch at the front of the drive carrier must be at the right. Do not
push on the black drive carrier lever until the lever begins to close by itself. Once the
black drive carrier lever begins to close by itself, push on it to lock the drive carrier
into place.
Important: Ensure the drive carrier is orientated so the hard disk is on top and the drive carrier lever
opens from the right. Do not force the drive carrier into the storage system. If there is
resistance, make sure the drive carrier lever is in the fully open position.

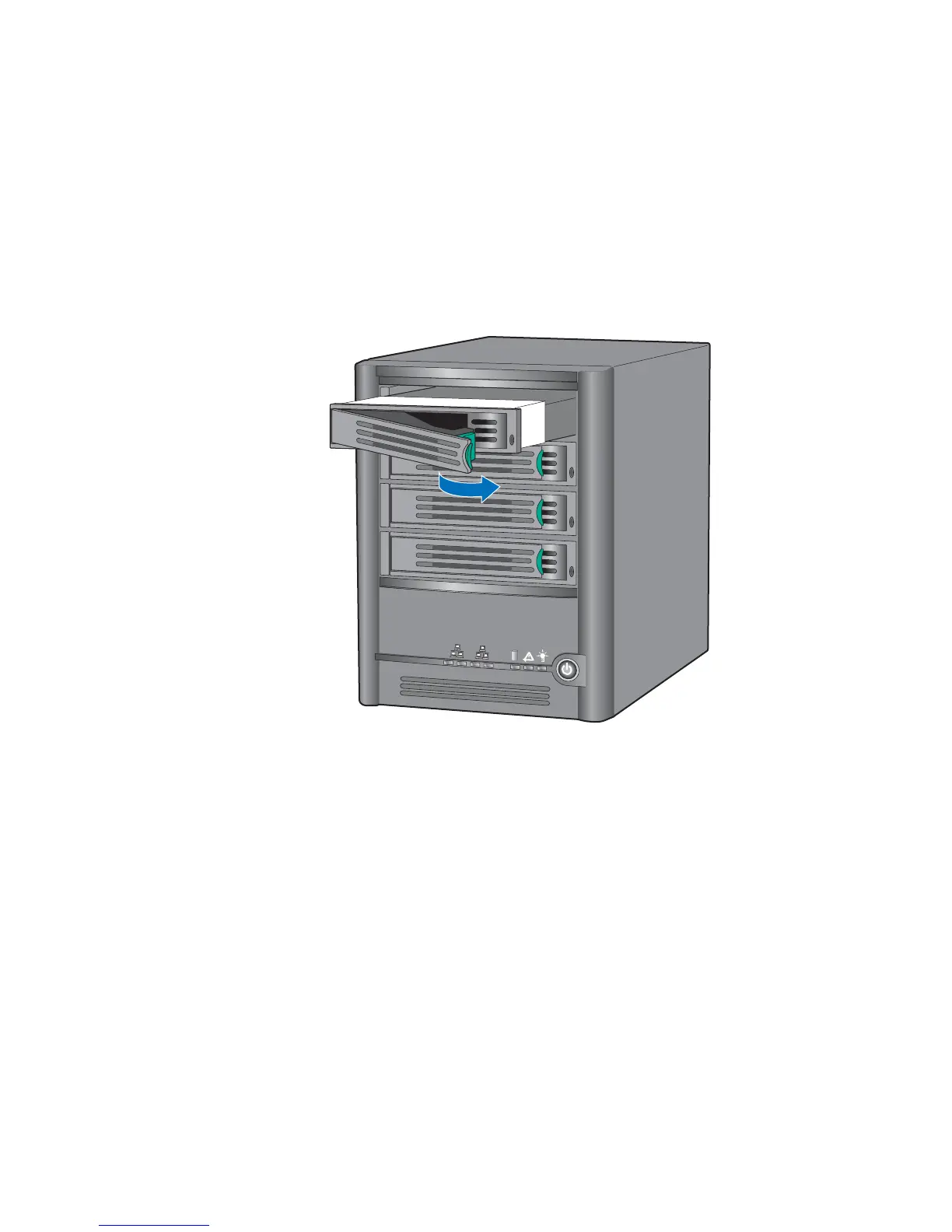

Figure 10. Re-installing the Drive Carrier into Storage System
TP02349
1
2
2
3
4
