5. Remove the hard disk from its wrapper and place it on an anti-static surface. Make
sure the hard disk is a SATA hard disk. It should have a rear SATA connector similar
to the following figure.

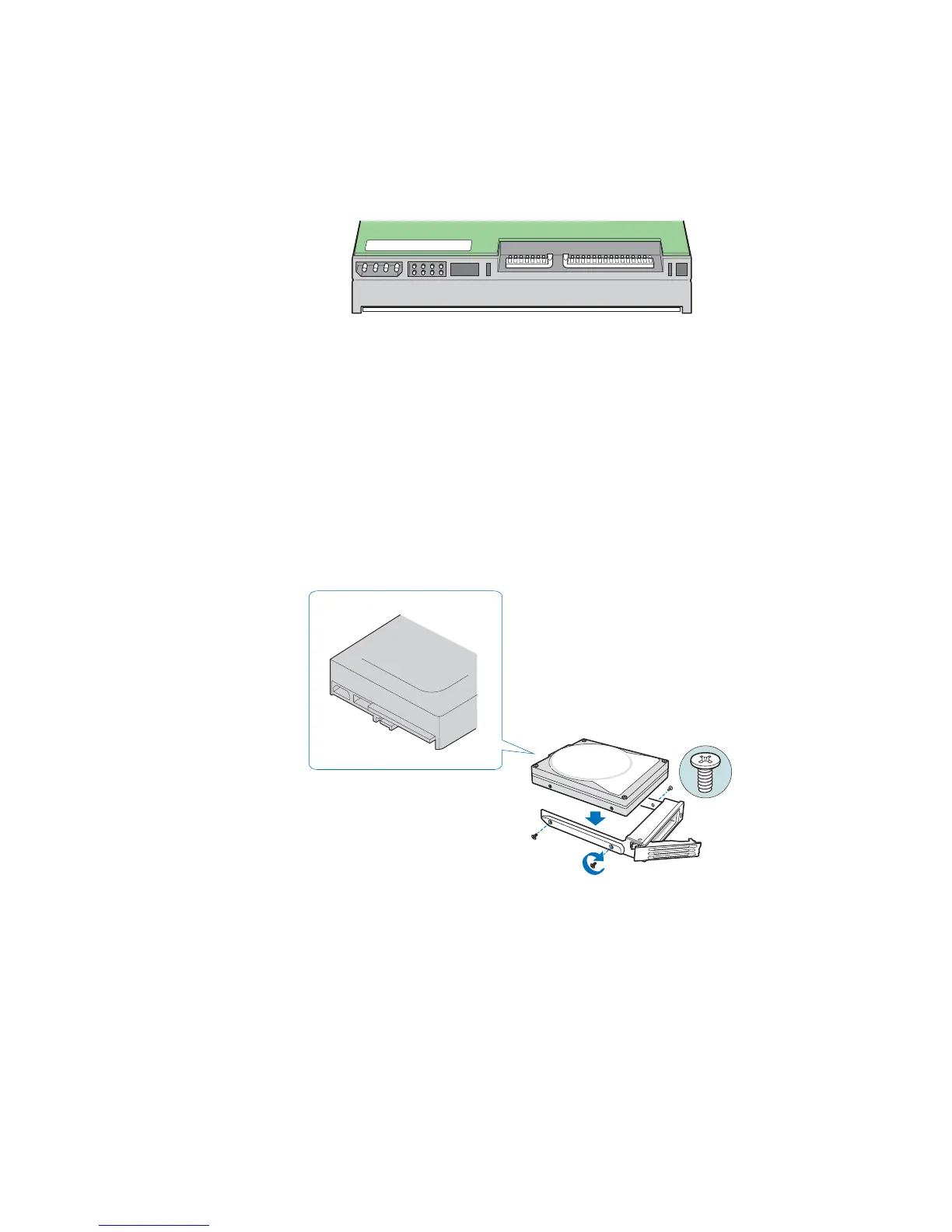

Figure 6. Rear View of SATA Hard Disk
6. With the hard disk circuit-side down, position the connector end of the hard disk so it
faces the rear of the drive carrier. Align the holes in the hard disk to the holes in the
drive carrier and attach the hard disk to the carrier with the screws removed in Step 4.
Note: Do not remove the side rail on the right side of the drive carrier. This rail
contains the light pipe that displays the LED light on the front of the drive
carrier. If the side rail comes loose, ensure the light pipe is properly inserted
into the LED hole before reattaching the side rail to the drive carrier.
Figure 7. Installing the Hard Disk into Drive Carrier
AF000306
TP00929
