8. Disconnect the fan power cable from the system board. See letter “A” in the following
figure. Remove the four screws securing the old system fan to the chassis. See letter
“B”. Remove the old system fan from the chassis. See letter “C”.

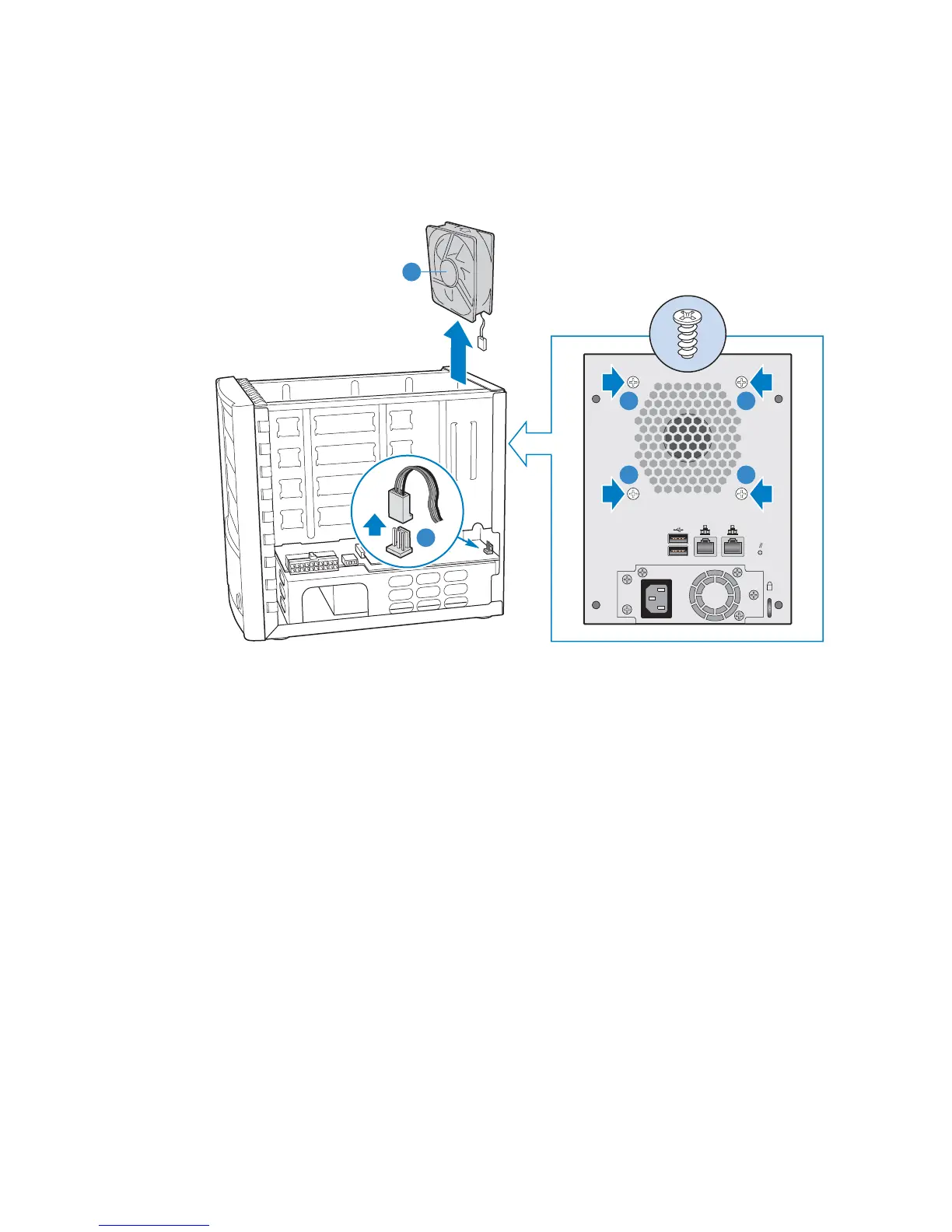

Figure 33. Removing System Fan
AF000297
BB
BB
K
C
A
