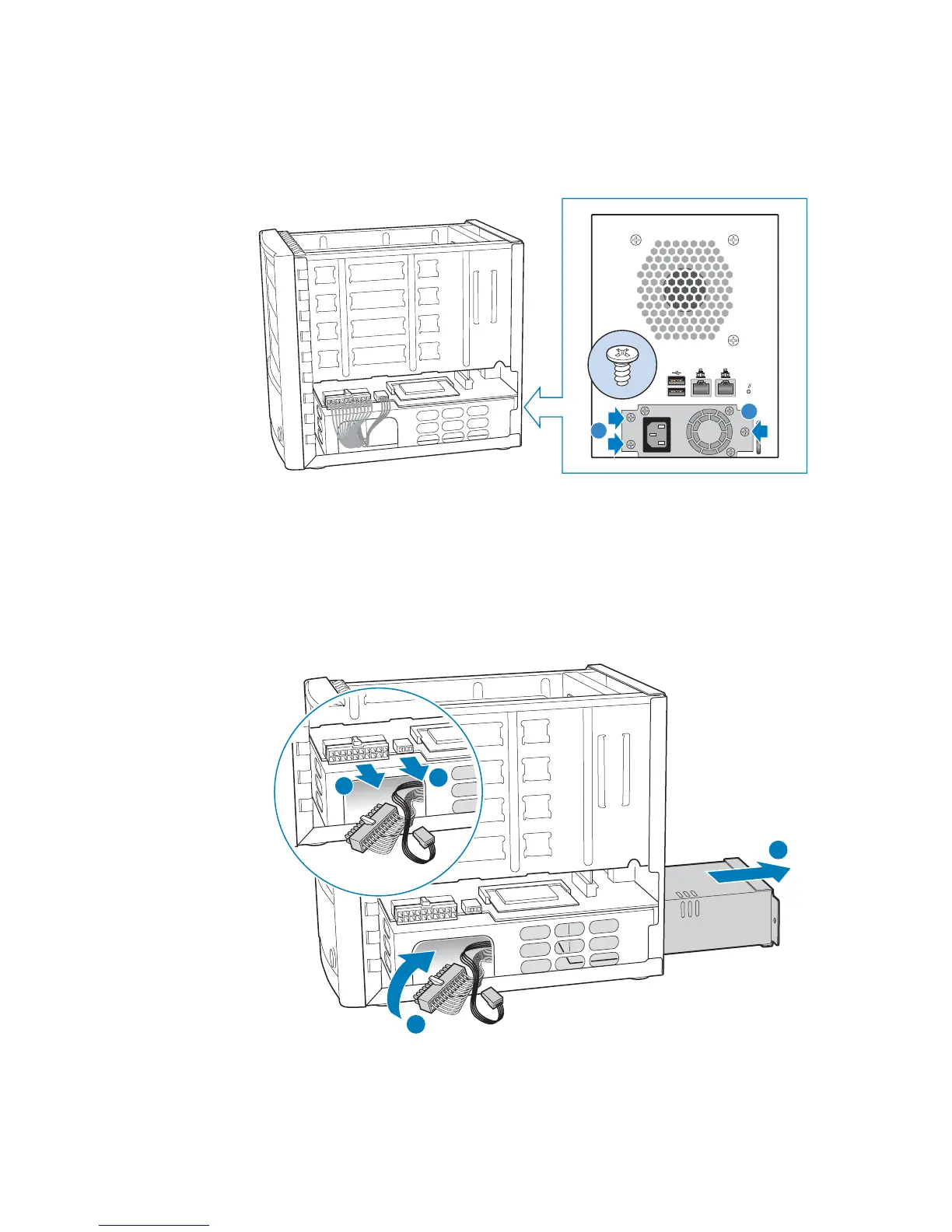

6. Remove the three screws securing the old power supply to the chassis. See letter “A”
in the following figure.
Figure 23. Detaching Power Supply from Chassis
7. Disconnect the large power cable. See letter “A” in the following figure. Disconnect
the small power cable. See letter “B”. Remove the old power supply from the chassis
by sliding the old power supply towards the rear. See letter “C”. Slide the power
cables through the opening in the power supply enclosure. See letter “D”.
Figure 24. Disconnecting Power Cables and Removing Power Supply Cage
AF000292
K
A
A
AF000293
B
A
D
C
To Next Page
