Hardware Installations and Upgrades
146 Intel
®
Entry Storage System SS4000-E User Guide
5. Remove the four screws at the back of the enclosure cover. See letter “A” in the
following figure. Slide the enclosure cover slightly rearward and then lift up. See
letter “B”.

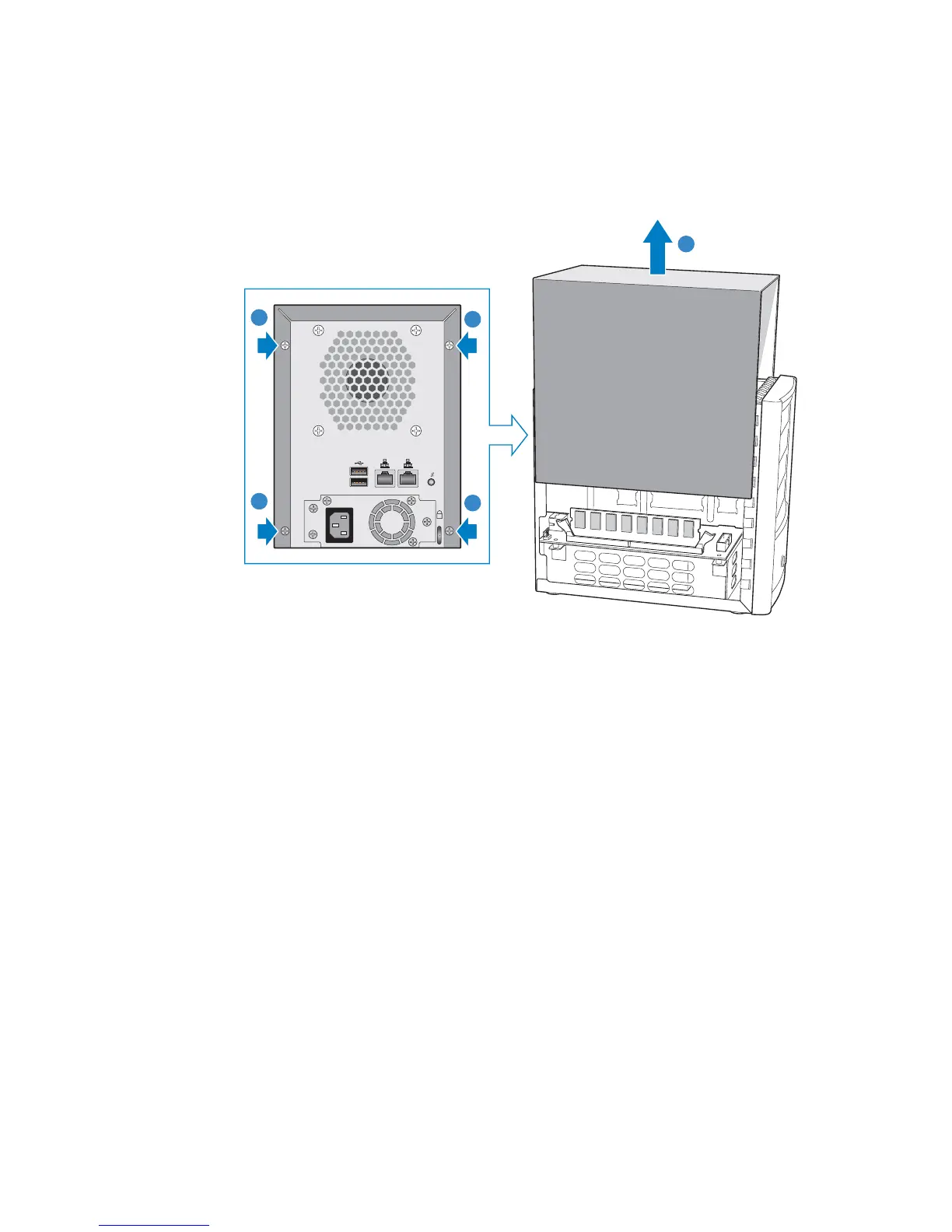

Figure 22. Removing Enclosure Cover
AF000231
K
A
A
A
A
B
