Hardware Installations and Upgrades
Intel
®
Entry Storage System SS4000-E User Guide 141
4. Press in the green latch at the end of the drive carrier to disengage the drive carrier
from the storage system. Pull out on the black lever to pull the drive carrier out of the
storage system.

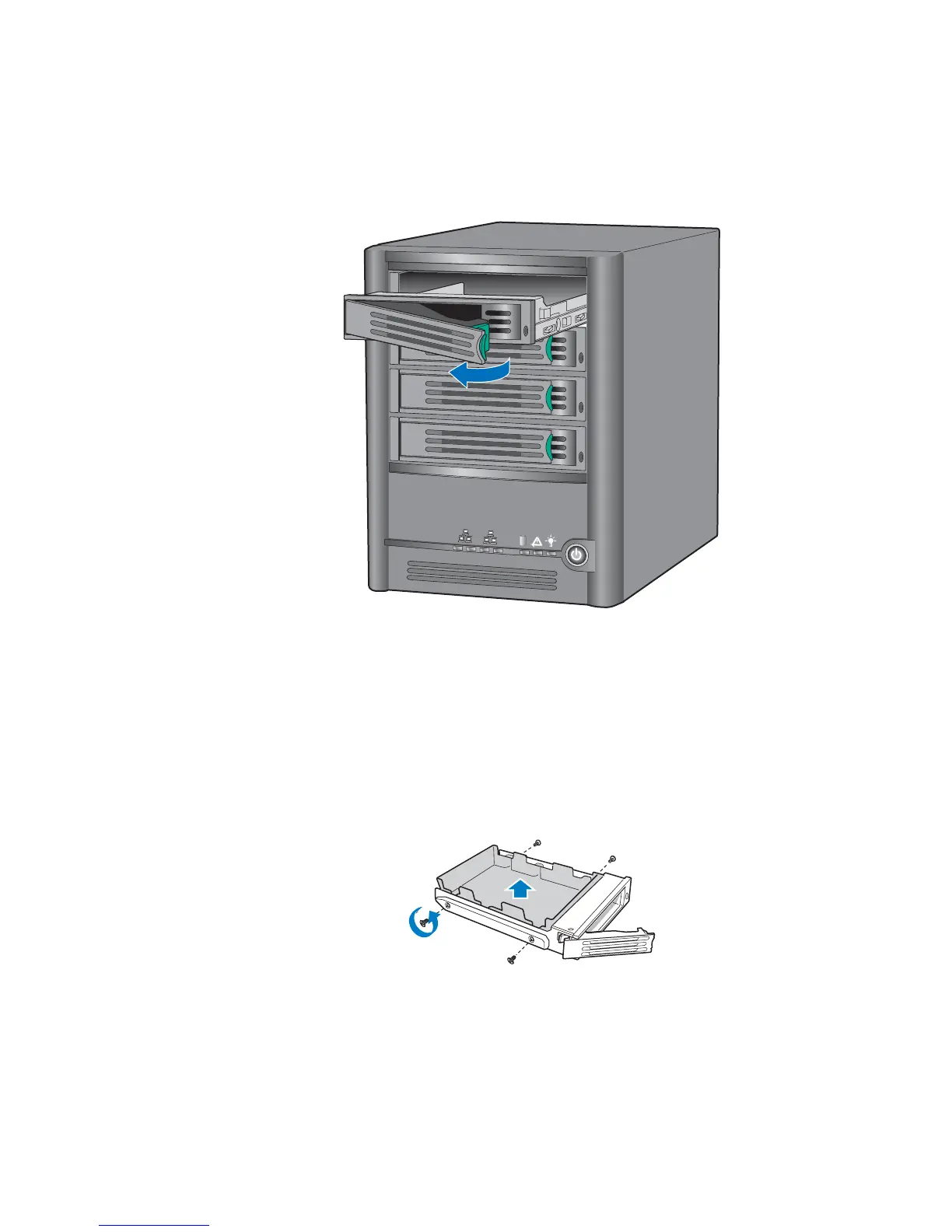

Figure 15. Removing Drive Carrier from Storage System
5. Remove the four screws that attach the plastic baffle or defective hard disk to the
drive carrier. Two screws are located on each side of the drive carrier.
Note: Store the plastic baffle for future use.
Figure 16. Removing Baffle from Drive Carrier
TP000230
4
3
2
1
1
2
TP00928
