Intel SS4000-E - Entry Storage System NAS Server User Manual

Hardware Installations and Upgrades
Intel
®
Entry Storage System SS4000-E User Guide 143
8. Label the hard disk appropriately. Starting with the uppermost drive, label the hard
disks 1 to 4.

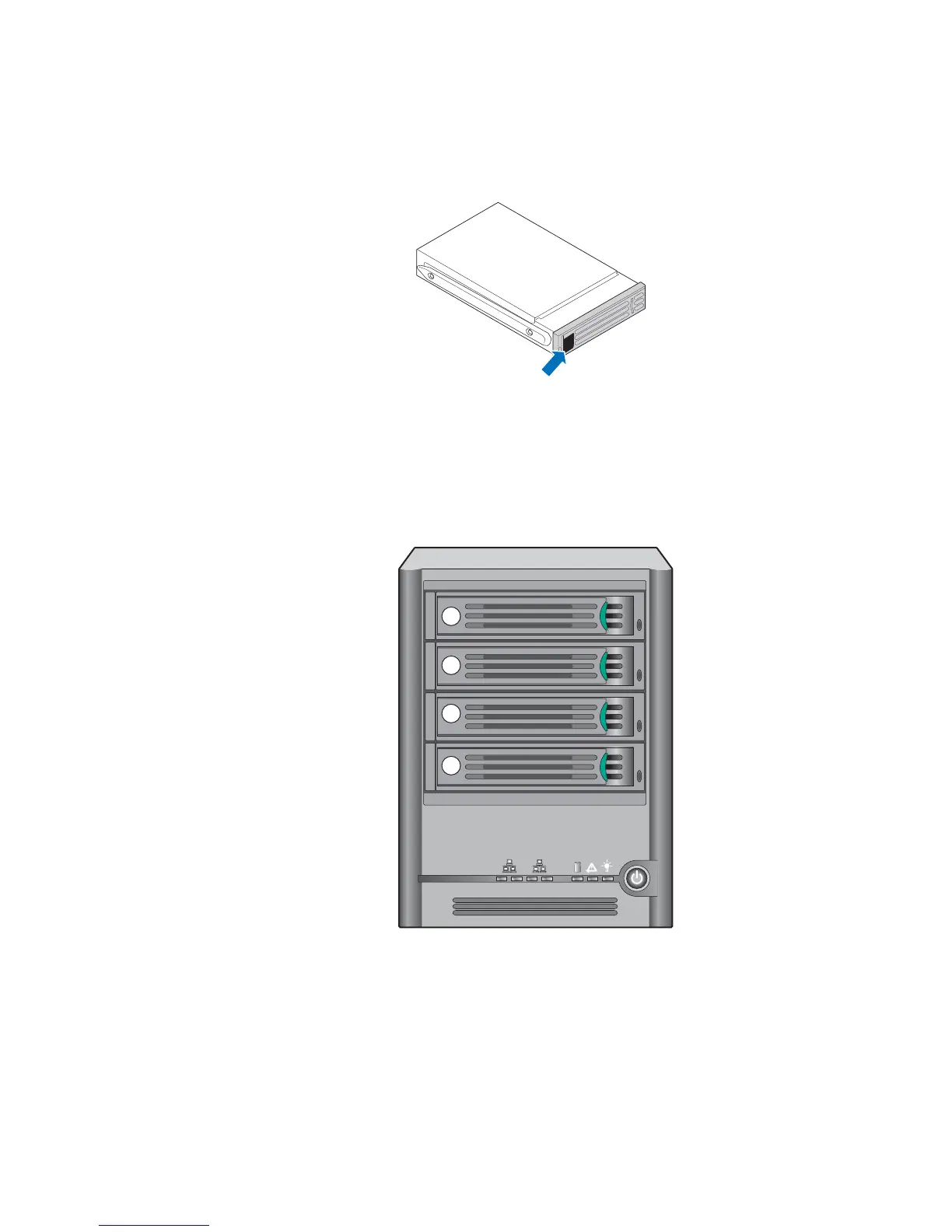

Figure 19. Affixing Label to Drive Carrier
Important: The order of drive carriers is critical when replacing hard disks or performing
maintenance. A hard disk plugged into an incorrect slot once set up for RAID can result in
data loss or an improperly functioning storage system.
Figure 20. Order of Drive Carriers
AF000241
HD 1
TP02348
1
2
3
4
1
2
4
3
2
1
