Hardware Installations and Upgrades
144 Intel
®
Entry Storage System SS4000-E User Guide
9. With the black lever in the fully open position, insert the drive carrier into the storage
system. The green latch at the front of the drive carrier must be to the right of the
storage system. Do not push on the black drive carrier lever until the lever begins to
close by itself. Once the black drive carrier lever begins to close by itself, push on it to
lock the driver carrier into place.
Important: Ensure the drive carrier is orientated so the hard disk is uppermost and the drive carrier
lever opens from the right. Also, do not force the drive carrier into the storage system. If
there is resistance, make sure the drive carrier lever is in the fully open position.

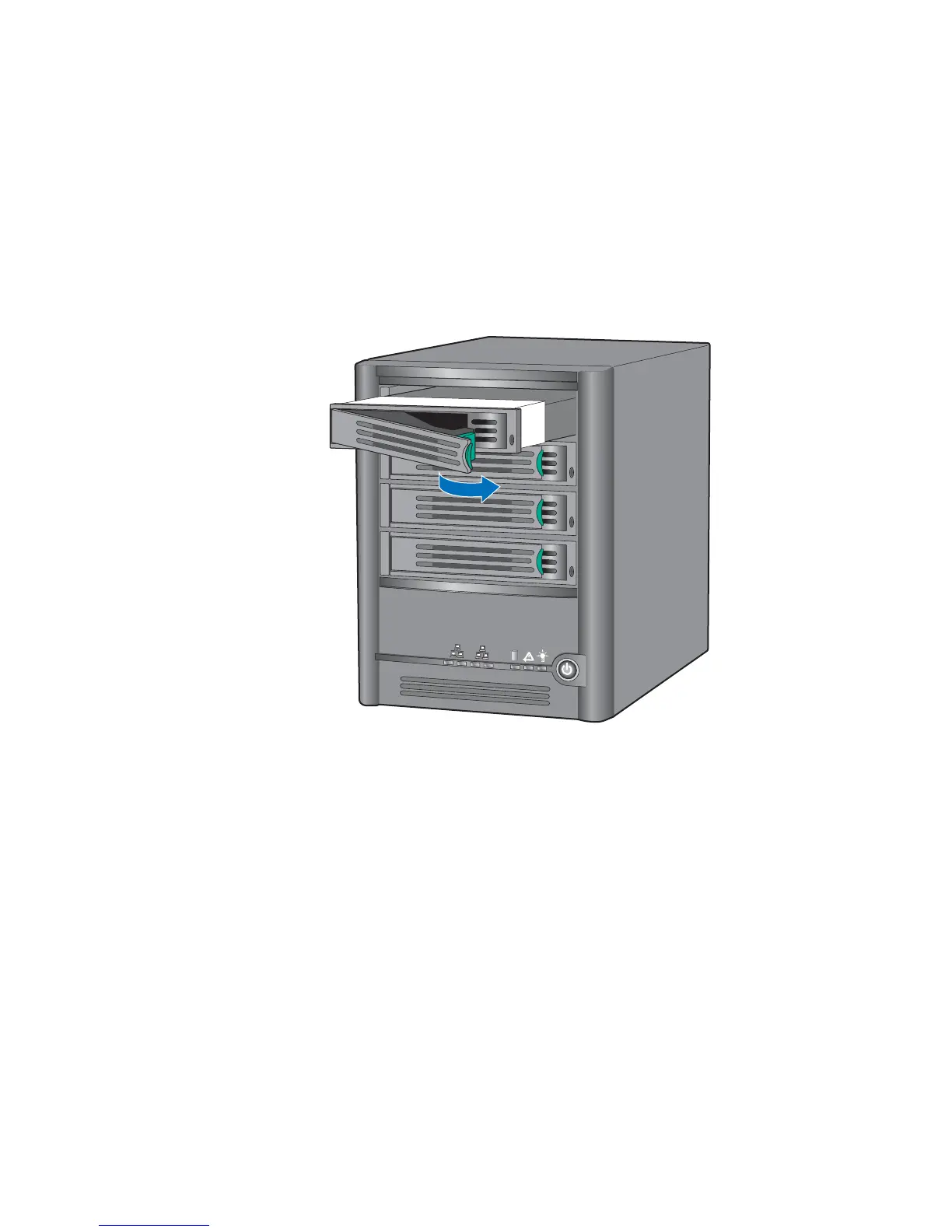

Figure 21. Re-installing Drive Carrier into Storage System
10. Reconnect the storage system to its power source.
11. Power up the storage system by pressing the power button on the front of the unit. The
System Status LED flashes while the system is booting up.
Notes: If your hard drive was part of a RAID array previously, it rebuilds automatically.
If you are replacing a failed hard disk in a RAID array, the Drive Status LED blinks
yellow until the array is rebuilt. Once the RAID is rebuilt, the Drive Status LED turns
green indicating normal operation. If the RAID rebuild fails, the Drive Status LED turns a
