Hardware Installations and Upgrades
Intel
®
Entry Storage System SS4000-E User Guide 149

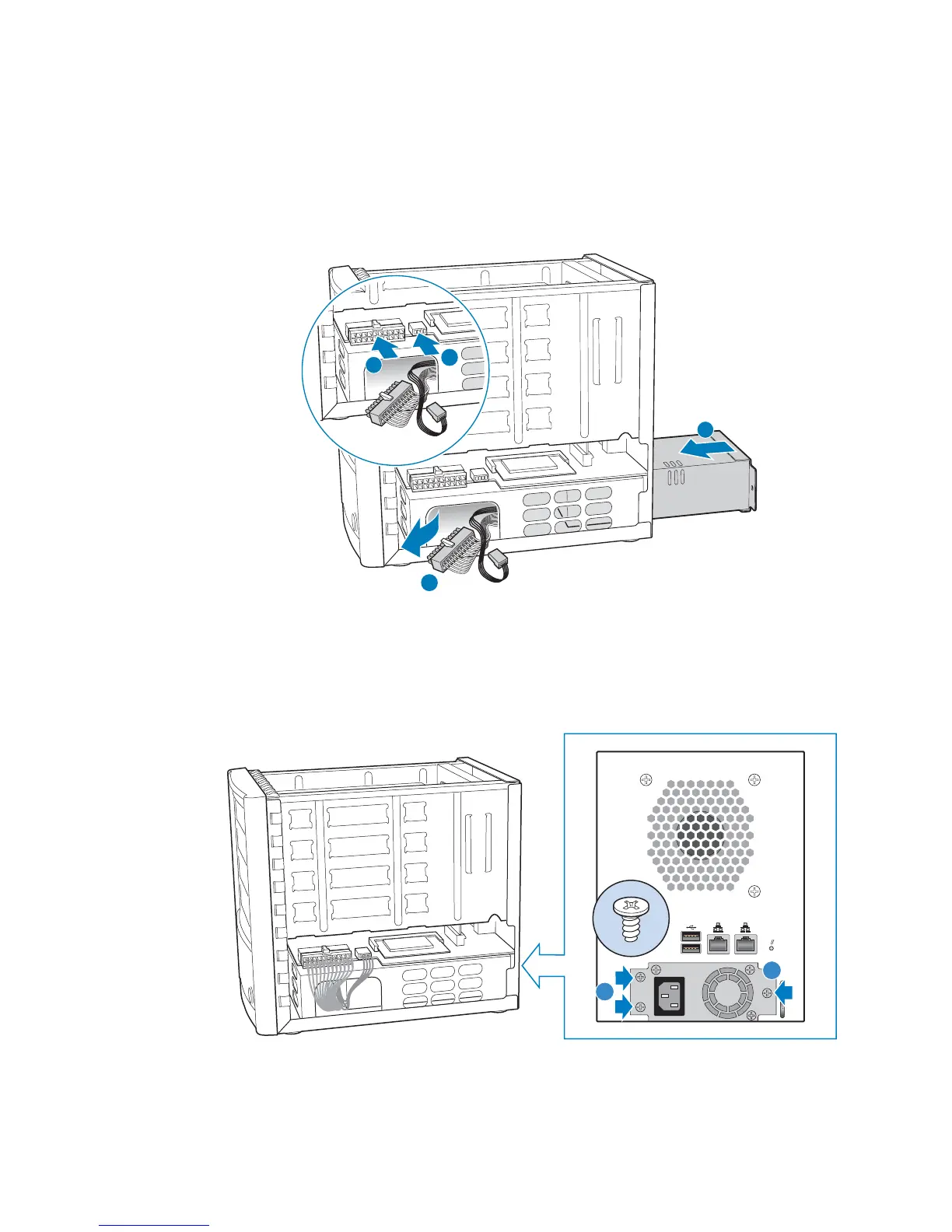

10. Slide the new power supply cage into the chassis. See letter “A” in the following
figure. Feed power supply cables through the opening in the side of the chassis. See
letter “B”. Connect the small power cable to its connector on the system board. See
letter “C”. Connect the large power cable to its connector on the system board. See
letter “D”.
Figure 27. Installing New Power Supply Cage
11. Secure the power supply cage to the chassis with three screws. See letter “A” in the
following figure.
Figure 28. Securing New Power Supply Cage to Chassis
C
D
B
A
AF000292
K
A
A
To Next Page
