Intel SS4000-E - Entry Storage System NAS Server - Figure 25. Removing Gasket from Old Power Supply; Figure 26. Installing Gasket on New Power Supply

Hardware Installations and Upgrades
148 Intel
®
Entry Storage System SS4000-E User Guide
8. Remove the three screws securing the power supply gasket to the old power supply
See letter “A” in the following figure.

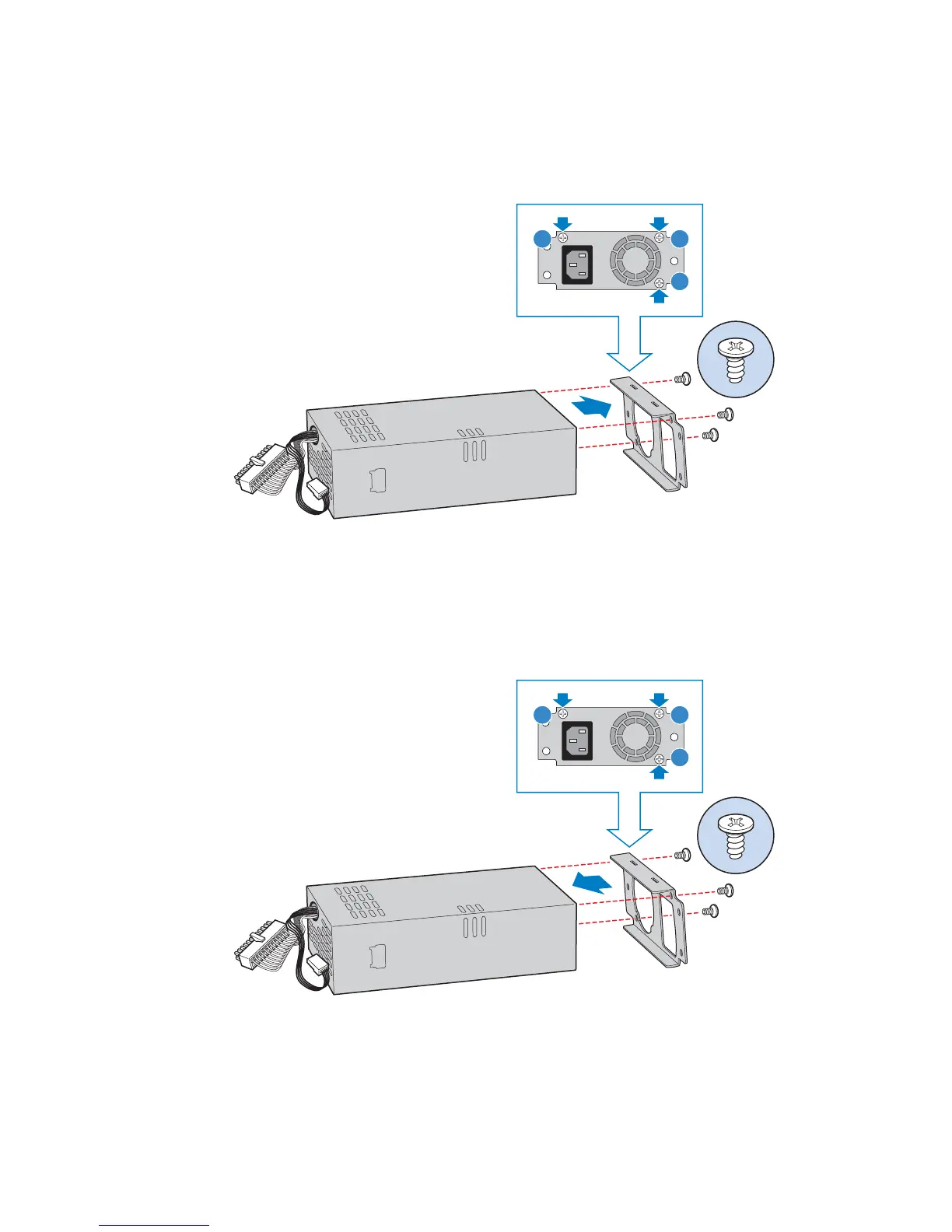

Figure 25. Removing Gasket from Old Power Supply
9. Attach the power supply gasket to the new power supply with the three screws
removed in the previous step. See letter “A” in the following figure.
Figure 26. Installing Gasket on New Power Supply
AF000301
A A
A
AF000302
A A
A
