Getting Started
Intel
®
Entry Storage System SS4000-E User Guide 19
To start the console:
1. Click Start > Programs > Storage System Console.

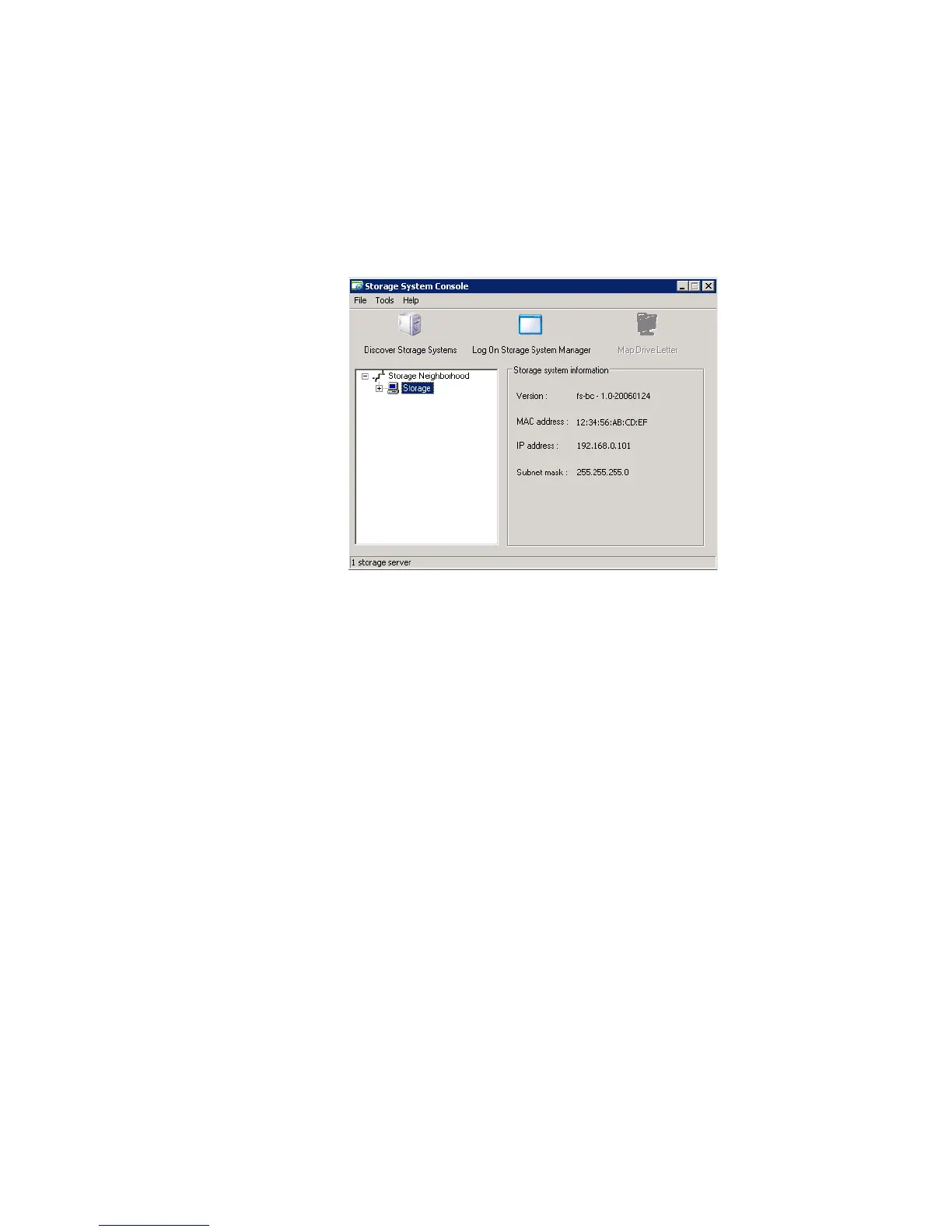

As soon as you start the Console, it scans the network for storage systems. This might
take a few minutes. When the scan is complete, the left pane displays a tree view of all
the storage systems it found.
Each storage system has two ports for connecting to the network. If your storage
system uses both ports, two items display in the tree in the left pane, each using the
same name. You can identify the IP address used by each port by clicking each item in
the tree and observing the IP address area in the right pane.
Note: If you connect a storage system to the network after the Console already
scanned it, or if you subsequently change the IP address of the storage
system, you must click Discover Storage Systems to scan the network again
and update the tree in the left pane.
If no storage system displays in the left pane, your computer might not be in
the same subnet as the storage system. Be sure to install the Console on a
computer in the same subnet as the storage system and try again.
2. In the left pane, select the name of the storage system that you want to access, such as
Storage, and then click Log On Storage System Manager. If your storage system
uses both available ports to connect to the network, you can select either item.
3. If your storage system is not initialized, the System Initialization page displays. For
more information, see the next section, “Initializing the Disks.”
If your storage system is initialized but not configured, the welcome page for the
System Setup Wizard displays. For more information, see “Configuring Your Storage
System” on page 21.
If your storage system is initialized and configured, the login page for the Manager
displays. For more information, see “Logging in to the Manager” on page 27.
