Working with Shared Folders
82 Intel
®
Entry Storage System SS4000-E User Guide

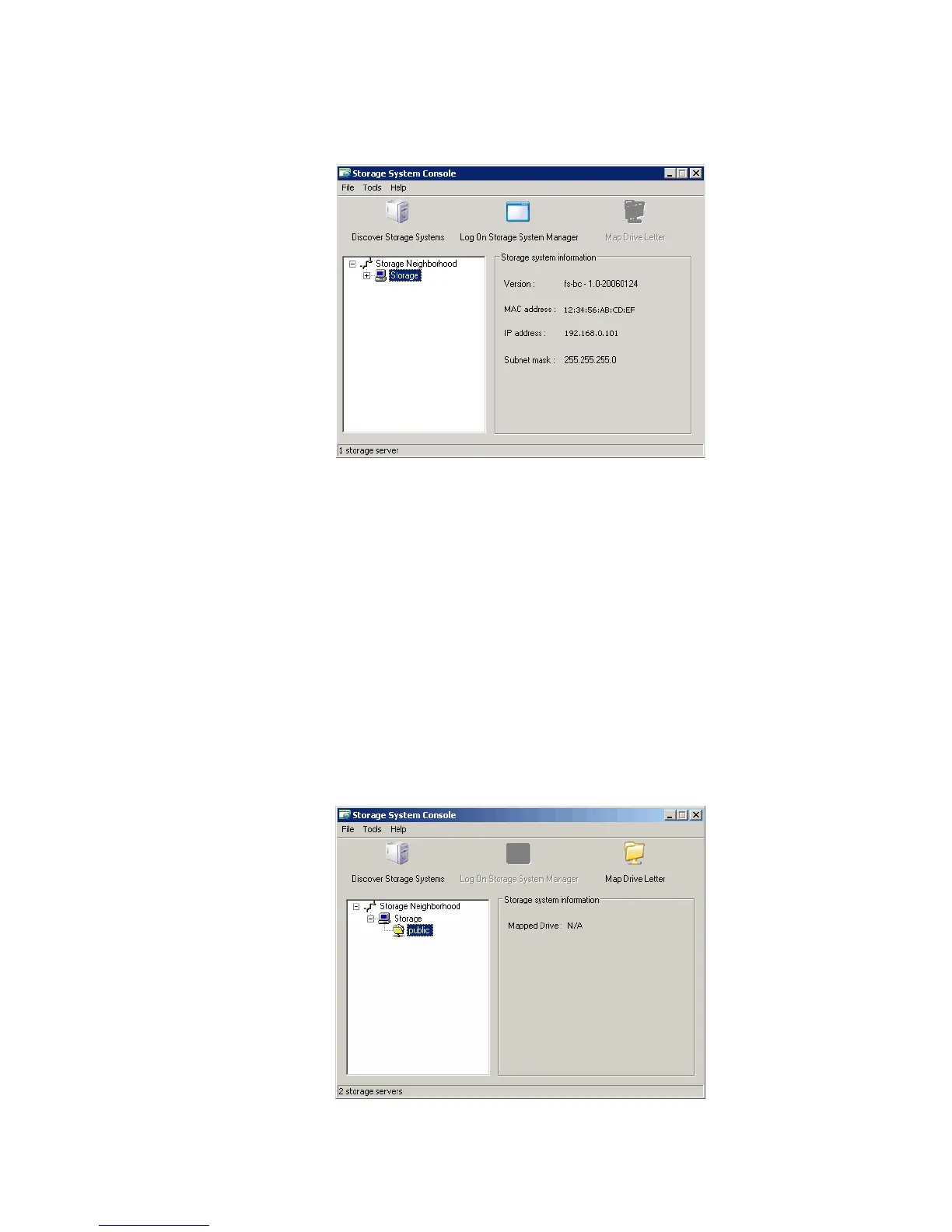

Each storage system has two ports for connecting to the network. If your storage
system uses both ports, two items appear in the tree in the left pane, each using the
same name. You can identify the IP address used by each port by clicking each item in
the tree and observing the IP address area in the right pane.
Note: If you connect a storage system to the network after the Console has already
scanned it, or if you change the IP address of the storage system, you must
click Discover Storage Systems to scan the network again and update the tree
in the left pane.
3. In the left pane, double-click the name of the storage system that contains the shared
folders that you want to access.
If your storage system uses both available ports to connect to the network, you can
double-click either name.
The storage system name expands to display all the available shared folders.
