EasyCoder PX4i and PX6i Service Manual 109
Chapter 9 — Liner Takeup Kit
9.2 Main Parts
The stepper motor is fi tted to the printer’s center section using a motor
support plate. It drives the liner/batch takeup unit and the liner drive roller
in the print unit via two belts. The tension of these belts can be slightly
adjusted by moving the stepper motor and/or support plate before the
screws are tightened.
The takeup unit is fi tted with a brace, that holds the liner or media. The
unit is fi tted to the printer’s center section using two #T20 Torx screws
inserted from media compartment.
A break shaft in front of the takeup unit guides the liner or media under
the slack absorber.
The stepper motor is connected to P11 on the driver board, see Chapter
14.

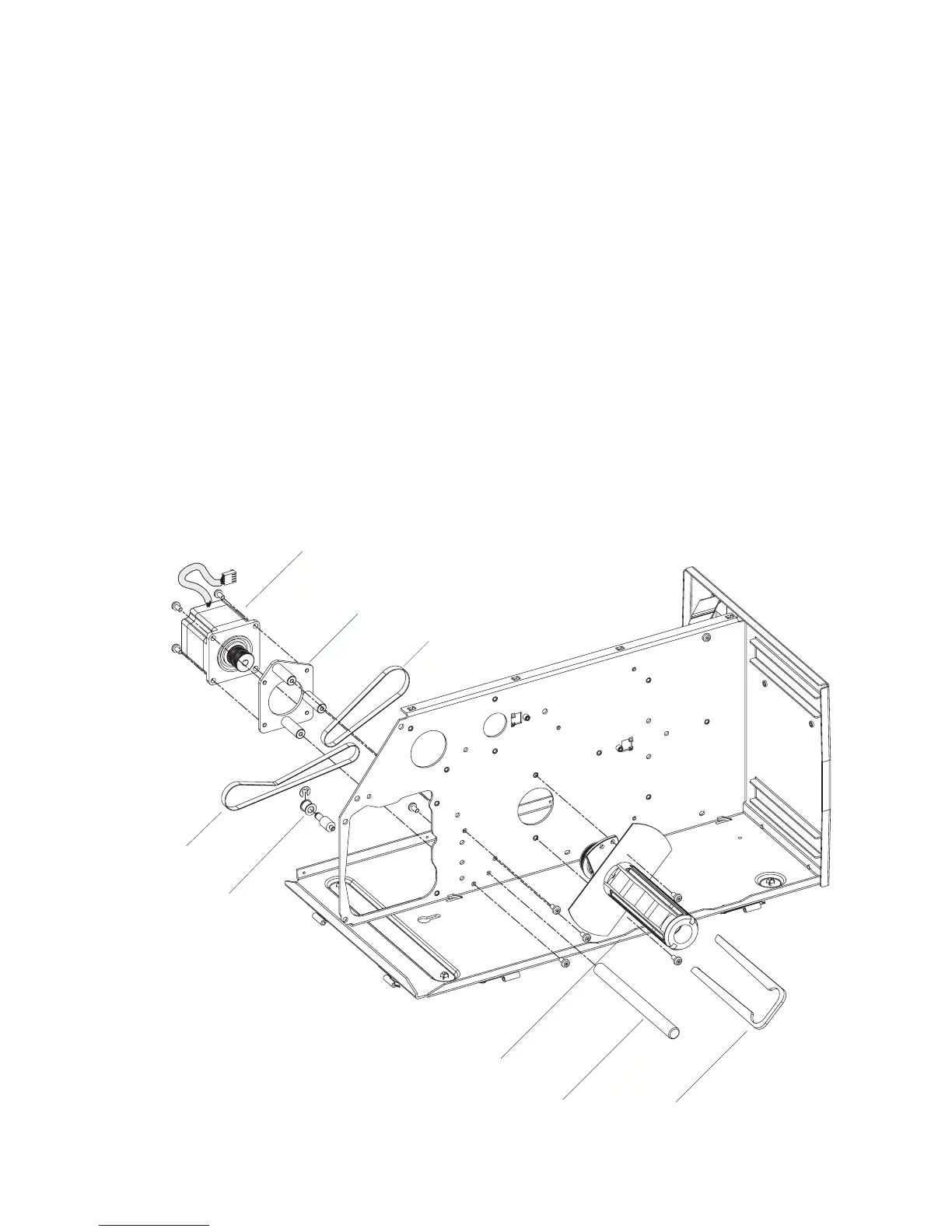

EasyCoder PX4i
Tension roller
Belt to liner/batch takeup unit
Belt to
liner drive roller
Stepper motor
Motor support plate
Brace
Break shaft
Liner/batch takeup unit

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
