Chapter 5 — Media Supply

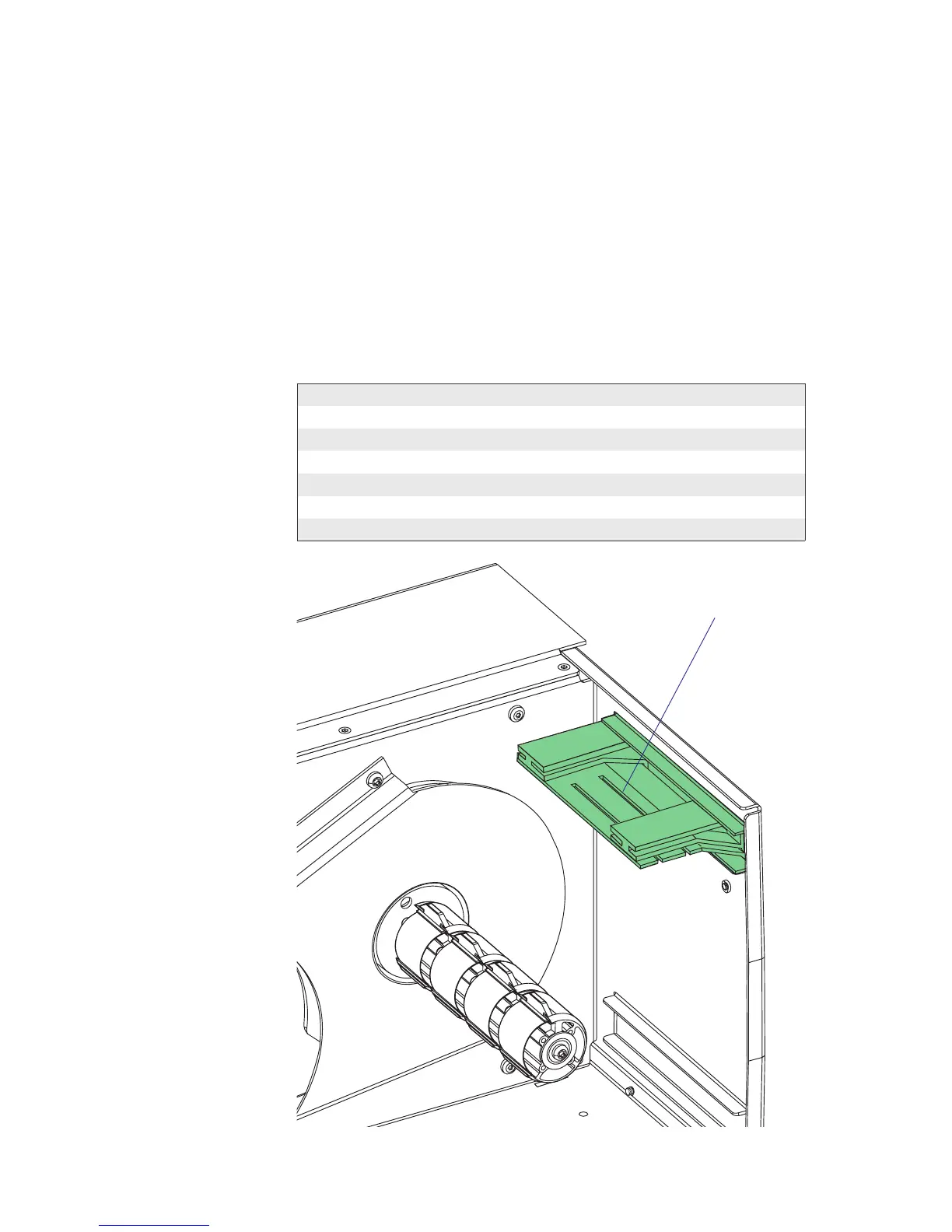

Fan-Fold Guides in upper
position (EasyCoder PX4i)
5.5 Fan-Fold Guides
Description
Instead of an internal media roll, the EasyCoder PX4i and PX6i printers
can also use media from an external supply, for example an external roll or
a stack of fan-folded tickets. The media is inserted into the printer through
either the upper or lower slot in rear plate.
It is important that the media path is properly aligned in parallel with the
printer’s center section. Therefore, Intermec offers an optional “Fan Fold
Kit” consisting of a bracket with two guides that can be fi tted in either the
upper or lower slot in the rear plate. The outer guide is adjustable for dif-
ferent media widths.
Max. Media Width (Fan-Fold Guides)
EasyCoder PX4i: 120 mm (4.72 in)
EasyCoder PX6i: 170 mm (6.69 in)
Min. Media Width (Fan-Fold Guides)
EasyCoder PX4i: 40 mm (1.575 in)
EasyCoder PX6i: 76.2 mm (3.00 in)

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
