184 EasyCoder PX4i and PX6i Service Manual
Chapter 16 — Interfaces
16.7 Double Serial Interface Board (Fingerprint only)
Description
The Double Serial Interface Board (DUART) is a Fingerprint-only
optional device for EasyCoder PX4i and PX6i printers. It provides these
printers with two extra serial interfaces.
"uart2:", "uart3:", or "uart4:"
This interface (marked “UART A” on the interface board) can be fi tted
with straps and circuits for one of the following alternatives:
• RS-232 non-isolated
• RS-422 isolated, full duplex
• RS-485 isolated, half duplex ("uart2:" only)
"uart3:", "uart4;", or "uart5:"
This interface (marked “UART B” on the interface board) can be fi tted
with straps and circuits for one of the following alternatives:
• RS-232 non-isolated
• RS-422 non isolated, full duplex
• 20 mA Current Loop.
The Double Serial Interface Kit contains:
• One interface board fi tted for RS-232 on both ports.
• Two fl at cables
• One hexagonal spacer
• One Installation Instruction booklet
Circuits for modifying the board for RS-422 non-isolated, RS-422 iso-
lated, RS-485 isolated, or 20 mA current loop can be bought separately
from Intermec.

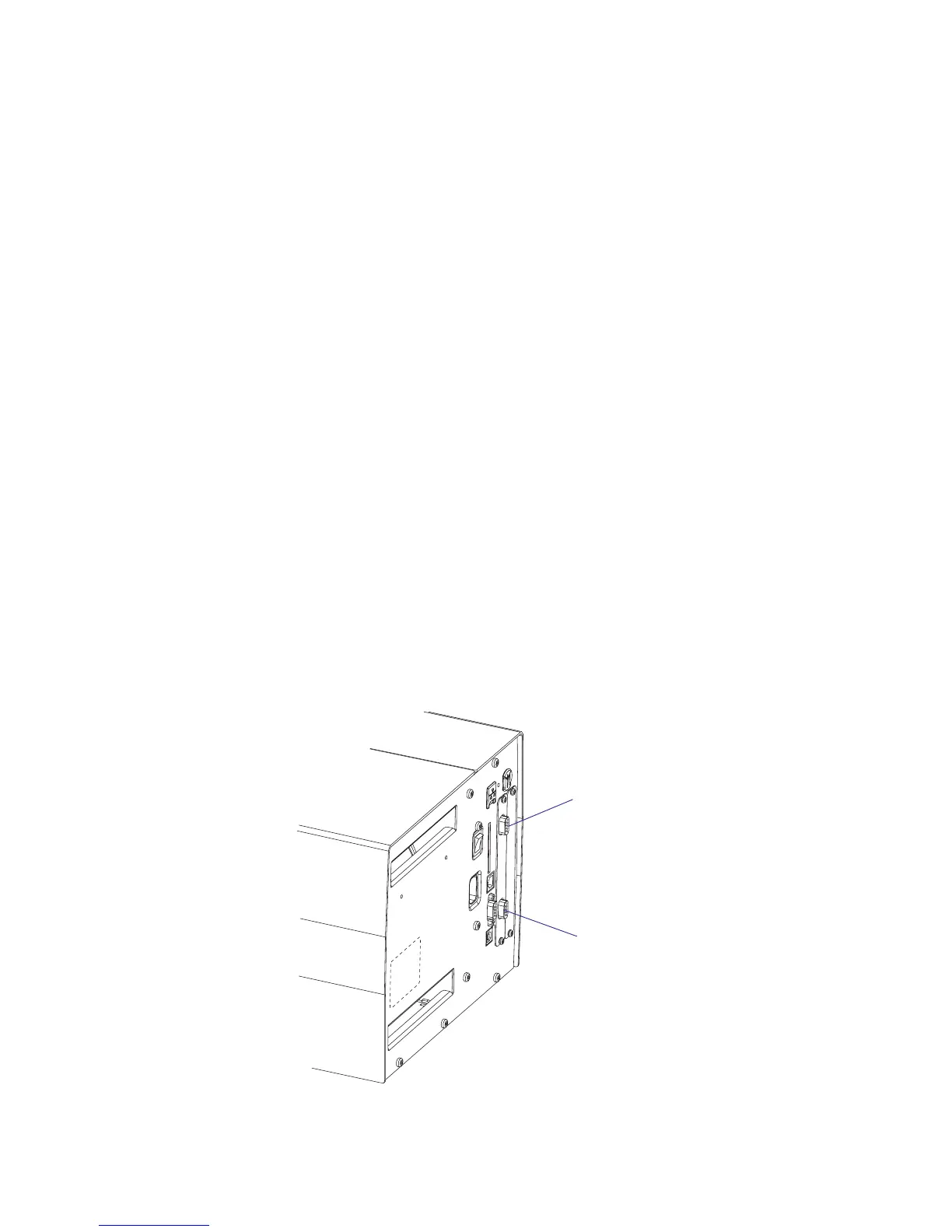

"uart3:"
(DB-9pin socket)
"uart2:"
(DB-9pin socket)

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
