Chapter 6 — Label Slack Absorber
6.1 Description
The label slack absorber compensates for sudden jerks at the media, for
example when high speed printing is started and stopped. When the
printing starts, the tension is increased and the absorber is pulled forward/
upward. As soon the heavy media roll starts to rotate, the tension decreases.
The spring-loaded absorber can then return towards its original position.
During the printing, the absorber will fl utter back and forth, compensating
for the variations in tension.
To facilitate media load, the label slack absorber can be rotated 180° clock-
wise. It can be locked in open position using a snap-lock. Remember to
unlock the slack absorber before starting to print.
An adjustable edge guide is fi tted on the label slack absorber to prevent
media misalignment. The guide is fi tted as standard, but can be removed
to facilitate media load when there are other means of guiding the media,
for example a media roll retainer or fan-fold guides (see Chapter 5).

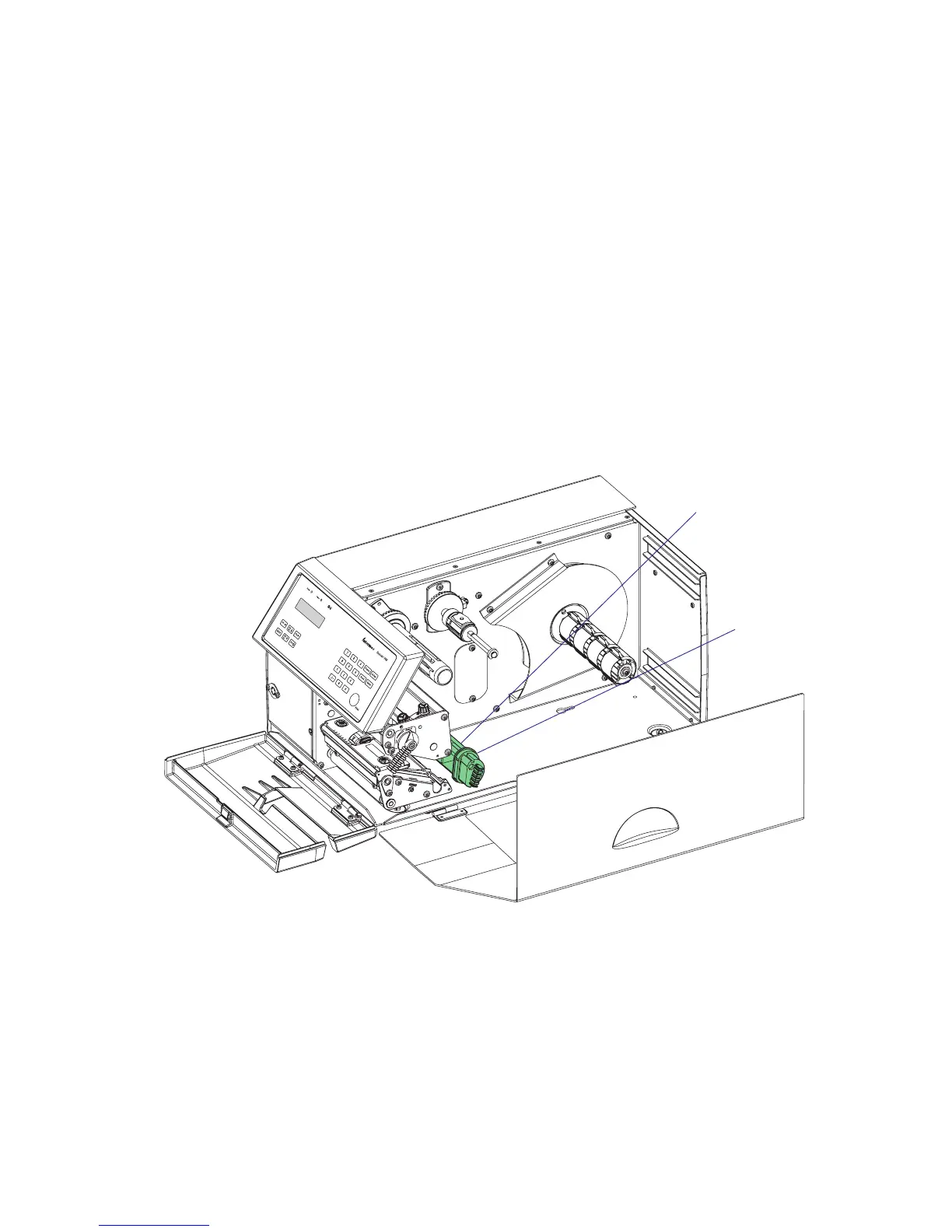

Edge
guide
Slack absorber

Intermec EasyCoder PX6i Specifications

General

Print technology	Direct thermal
Maximum resolution	203 x 203 DPI
Display	LCD
Product color	Silver
Standard interfaces	RS-232, USB 2.0
Internal memory	16 MB
Media thickness	2.4/10 mm
Maximum label width	170 mm
Maximum label length	4 m
Maximum roll diameter	213 mm
Maximum internal memory	1 GB
Supported network protocols	TCP/IP, LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv3, SMTP, SNMP-MIB II
Power requirements	90 - 265 VAC, 45 - 65Hz
Power consumption (standby)	20 W
Power consumption (printing)	125 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	40 - 104 °F
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	482 mm
Width	238 mm
Height	335 mm
Weight	14800 g
